Sunset Villa
Project Overview
Sunset Villa Renovation Work

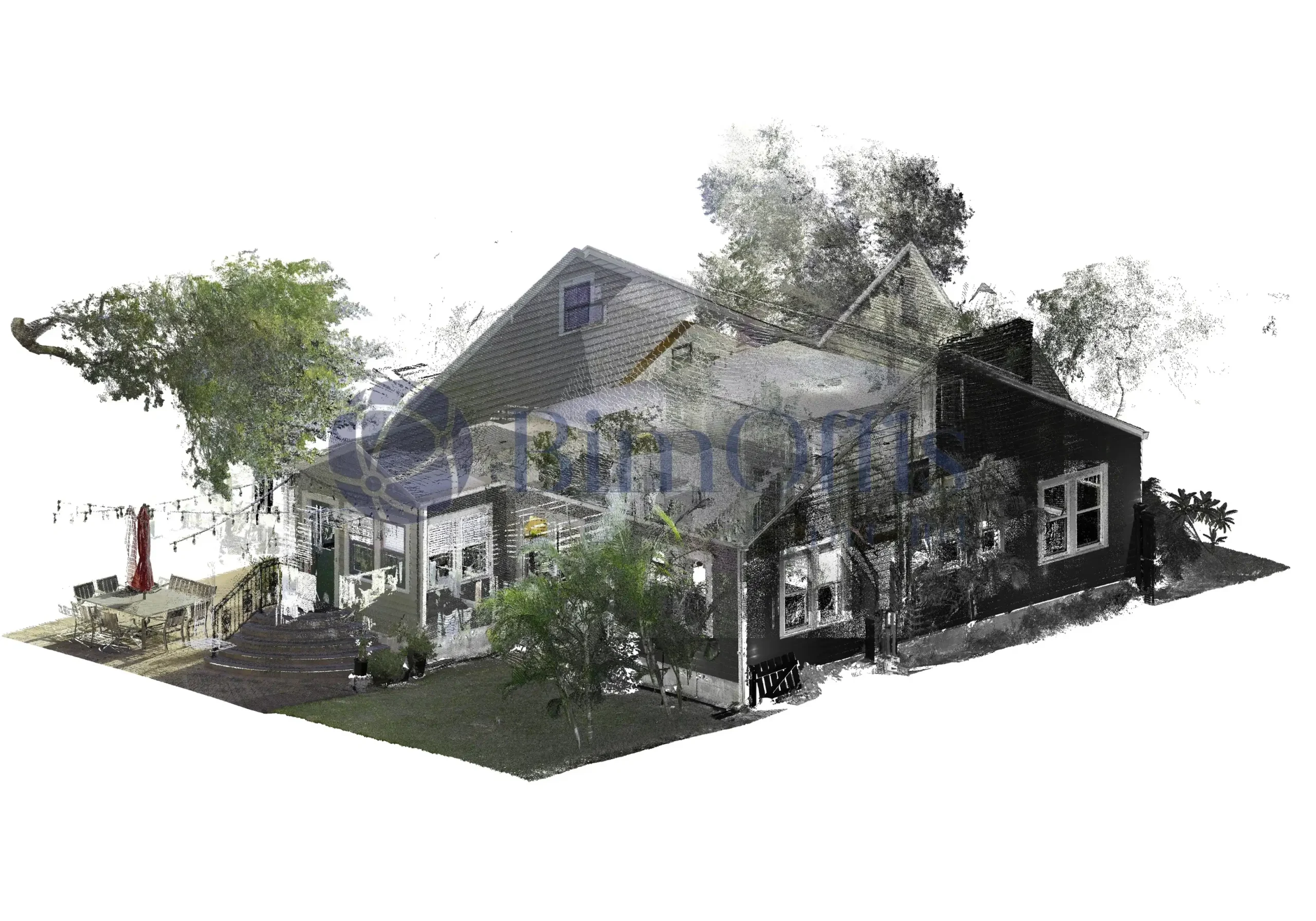

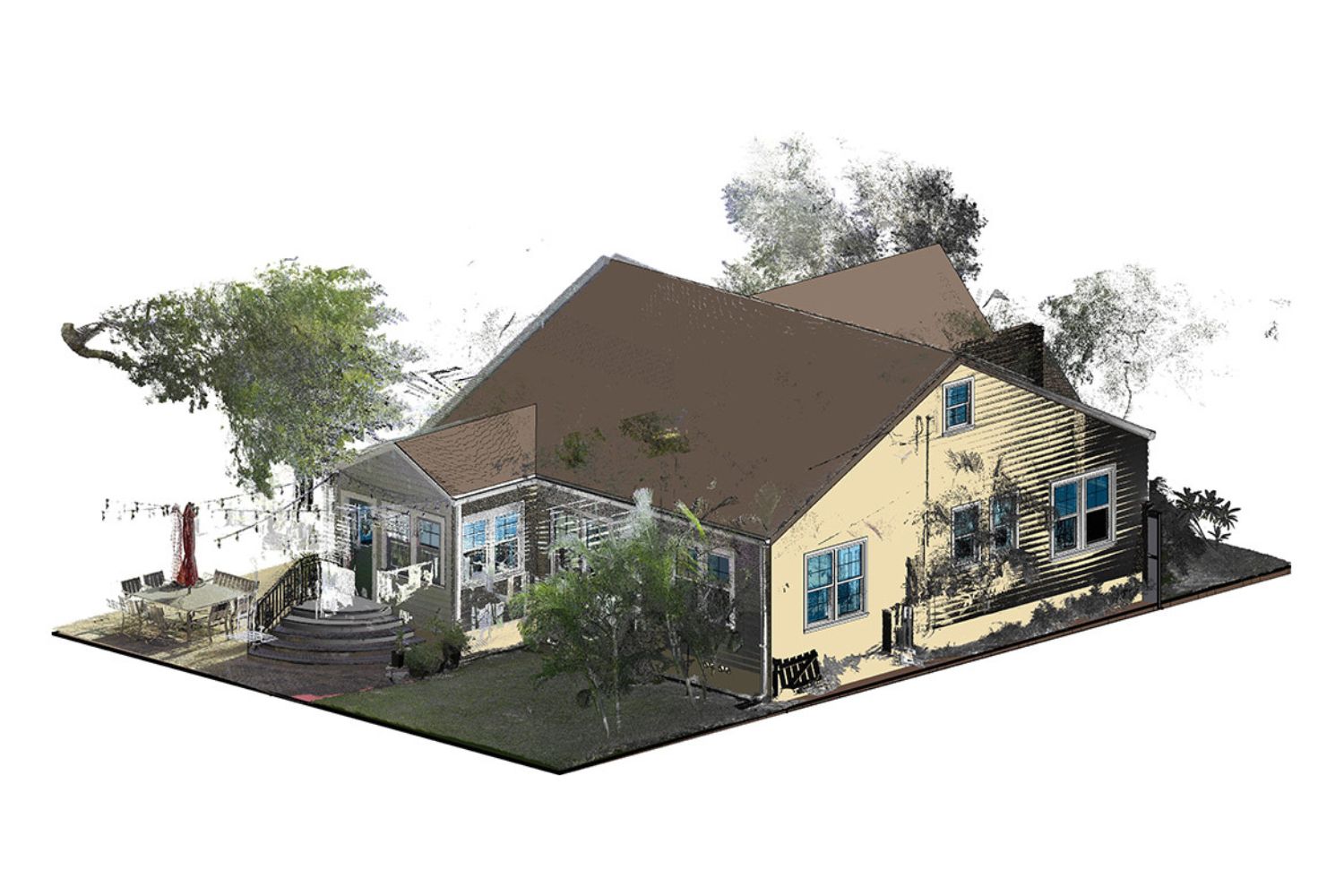

For the Sunset Villa project, the client was planning a renovation but didn’t have a clear picture of the existing structure. They had point cloud data, but on its own, it wasn’t very easy to work with for design decisions.
Working on the Sunset Villa Model

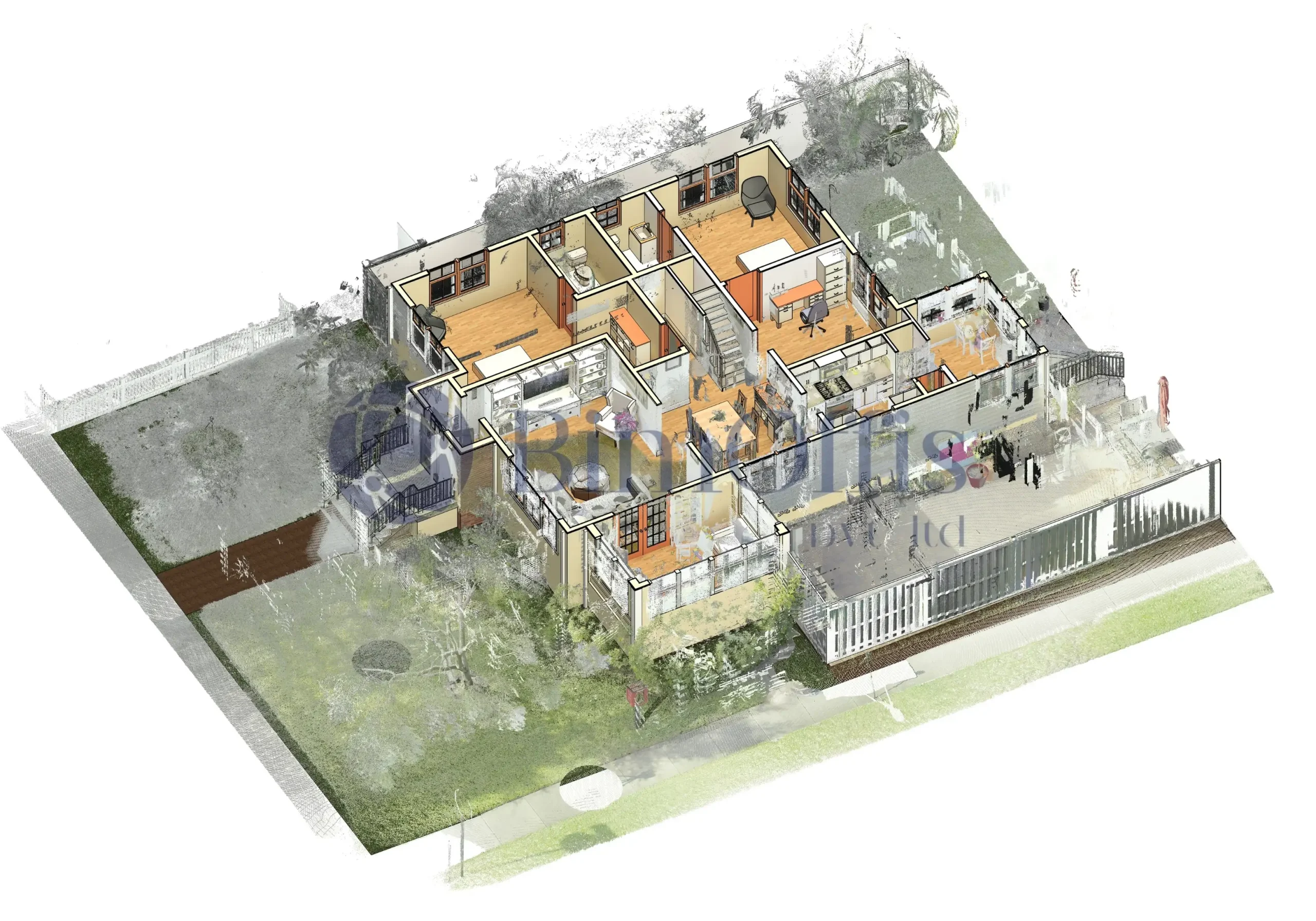

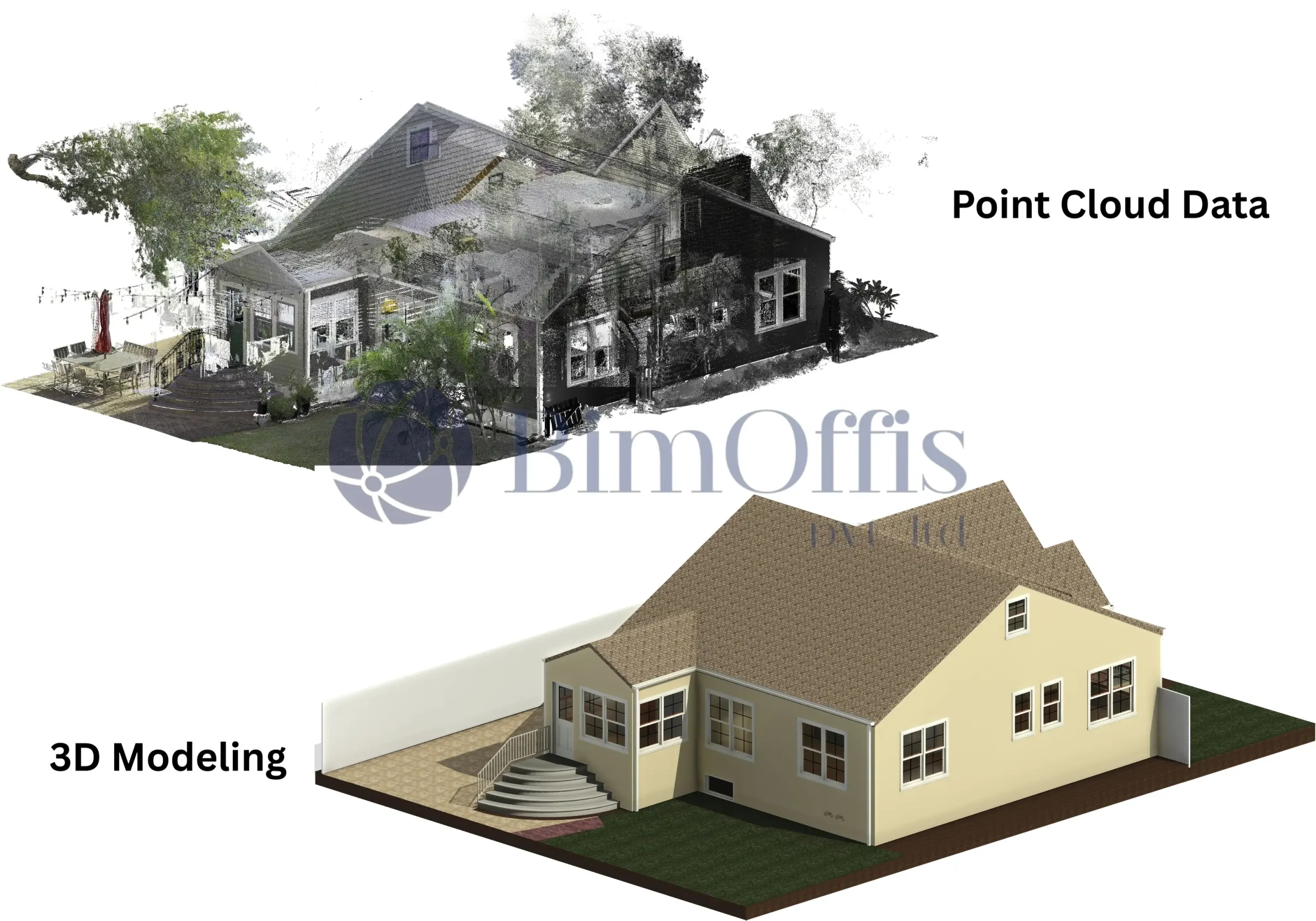

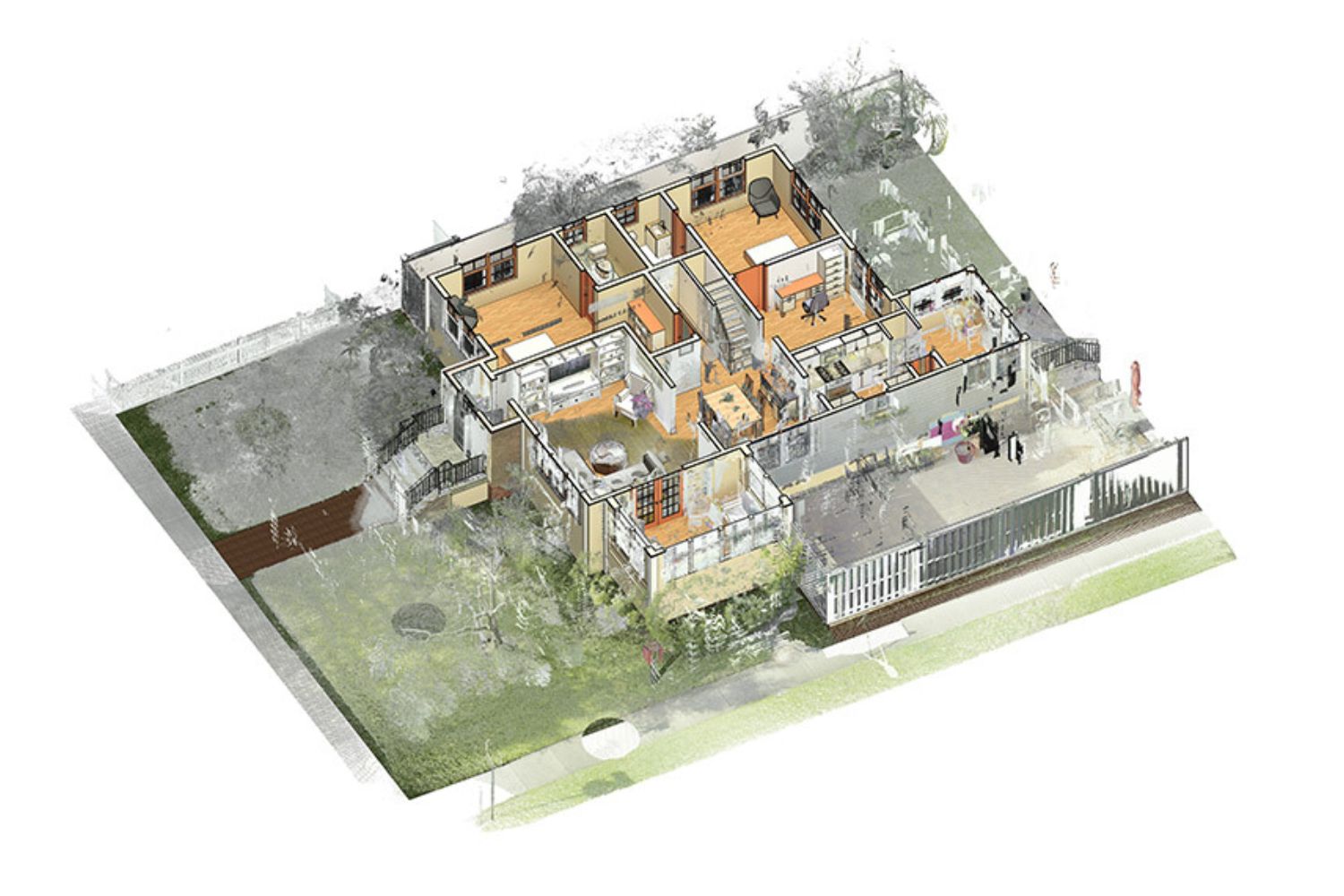

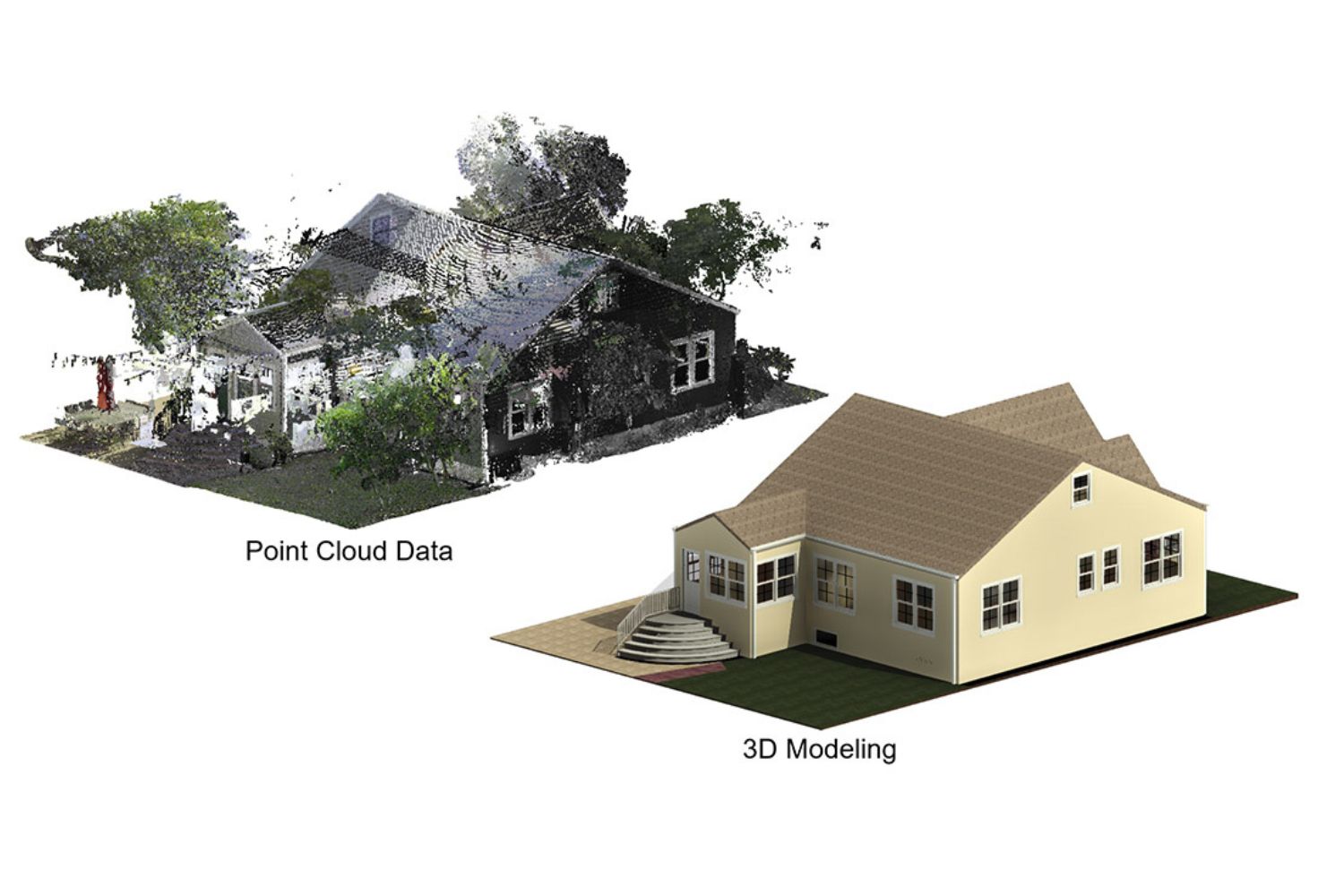

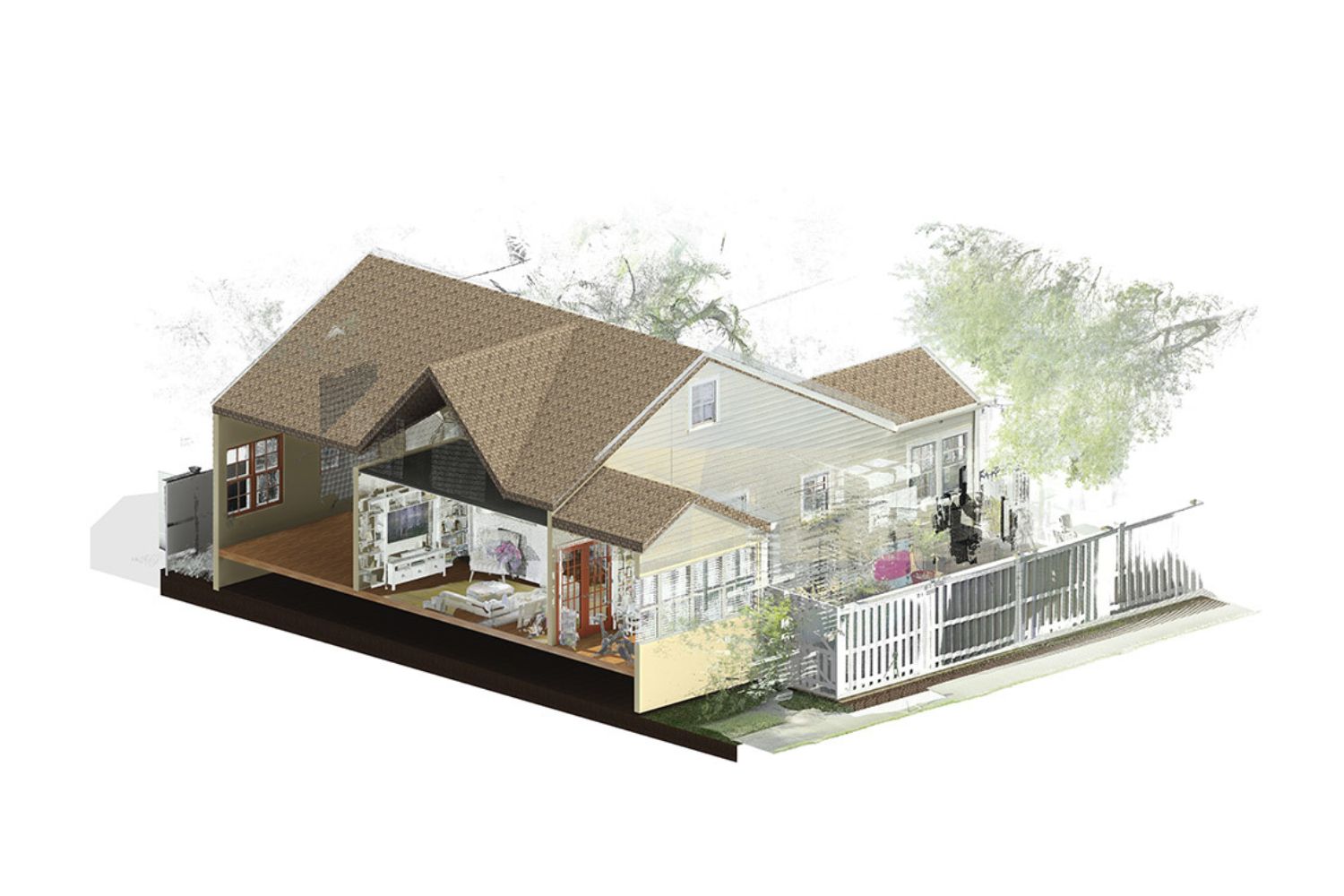

So we took that data and rebuilt the structure in Autodesk Revit. While doing that, we also fixed a few damaged or unclear parts, just to make sure the model actually reflects what’s on site.
Cleaning Things Up and Making It Usable
There were a few mismatches and conflicts in the existing structure, which we sorted out during modeling. Nothing fancy, just making things clearer so the team doesn’t run into confusion later.
Making the Sunset Villa Project Easier
In the end, the model made it much easier for the client to plan the renovation. Instead of guessing, they had something solid to work with, and that made the whole process smoother.
Scope of Work
SCAN - BIM
Total Area
3,500 Sq. Ft.
Services
Architecture
Softwares Used
AutoCAD, Revit, Autodesk Recap
Sector
Residential
Location
USA
Ready to Work with us?
We establish long-term business relationships with our clients and are
committed to complete customer satisfaction. We would love to know
about your next project.
Project Challenges
Damaged Structure Assessment
Evaluating and rebuilding damaged portions of the existing building required precise site analysis to ensure the BIM model reflected actual conditions.
Point Cloud Data Interpretation
Transforming raw point cloud data into an accurate and structured architectural BIM model demanded careful validation of geometry and surfaces.
As-Constructed Modeling Accuracy
Developing a reliable as-constructed model required strict alignment between site observations, point cloud data, and BIM outputs.
Design and Renovation Integration
Balancing redesign requirements with renovation constraints required detailed coordination to ensure constructability and design intent.
Clash Identification and Resolution
Detecting and resolving conflicts within the architectural elements was critical to prevent execution issues during rebuilding.
Time-Bound Delivery
Completing a technically complex Scan-to-BIM and renovation project within a fixed timeline required efficient workflows and disciplined coordination.
What We Delivered
- As-constructed Architectural BIM model developed from point cloud data

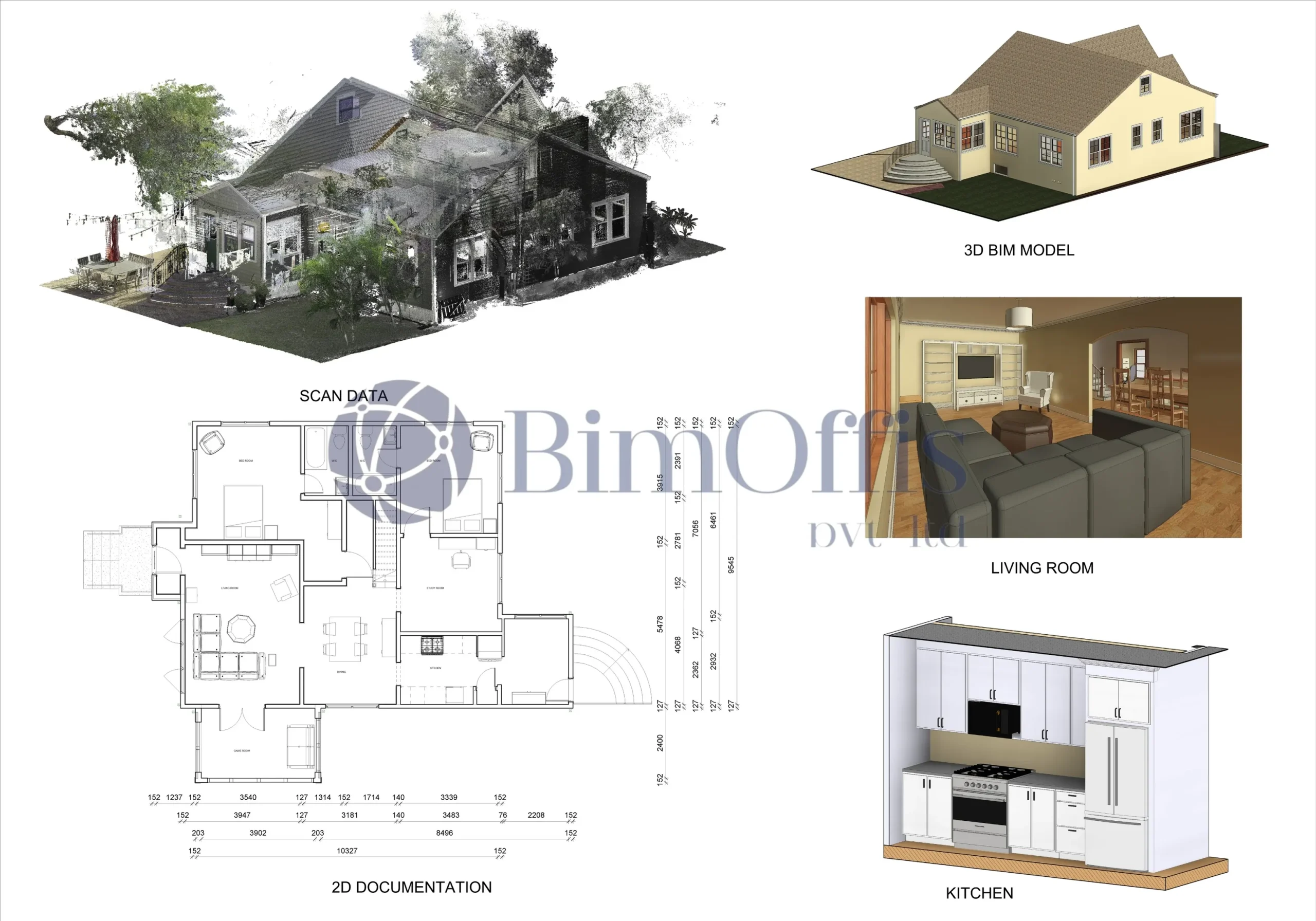

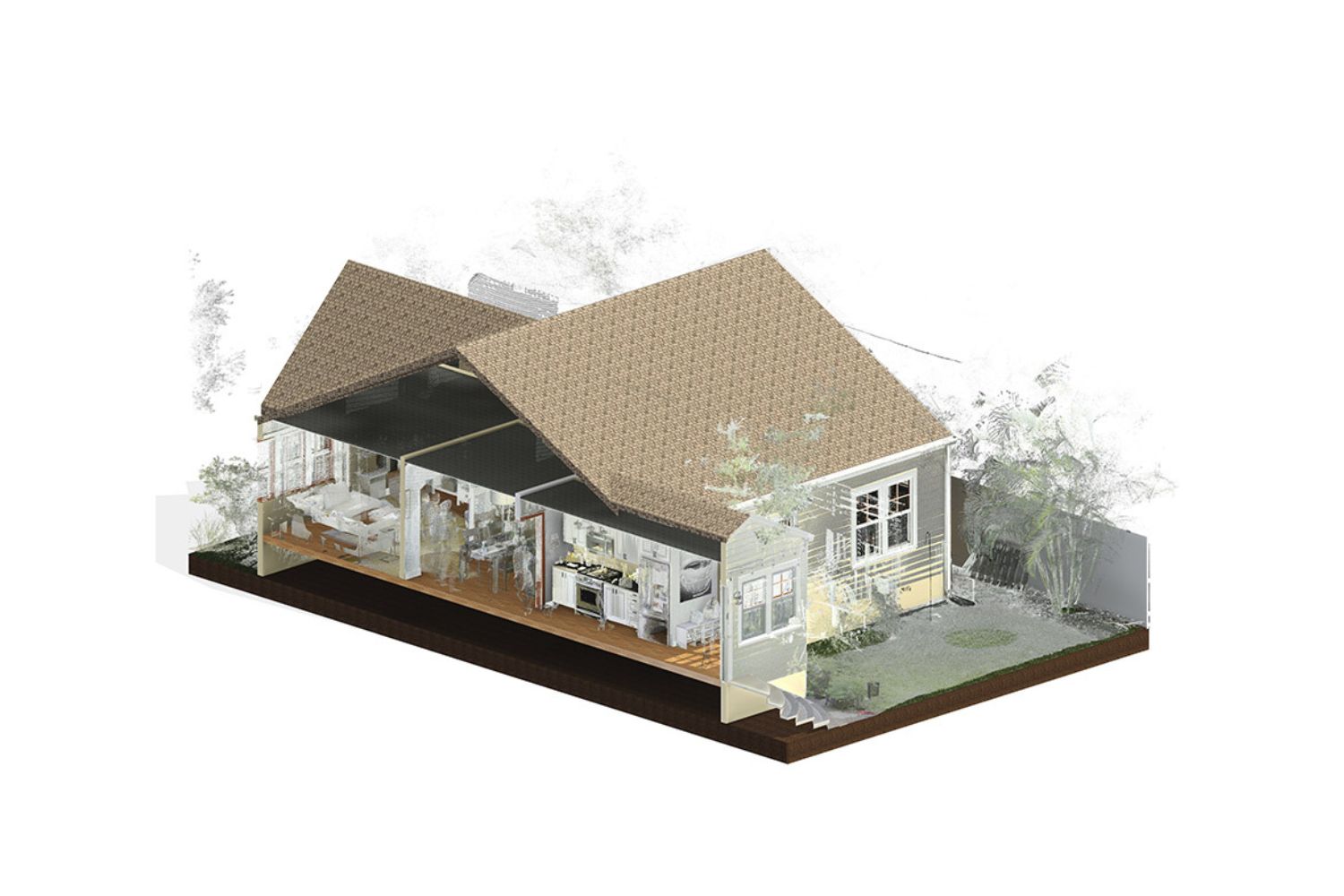

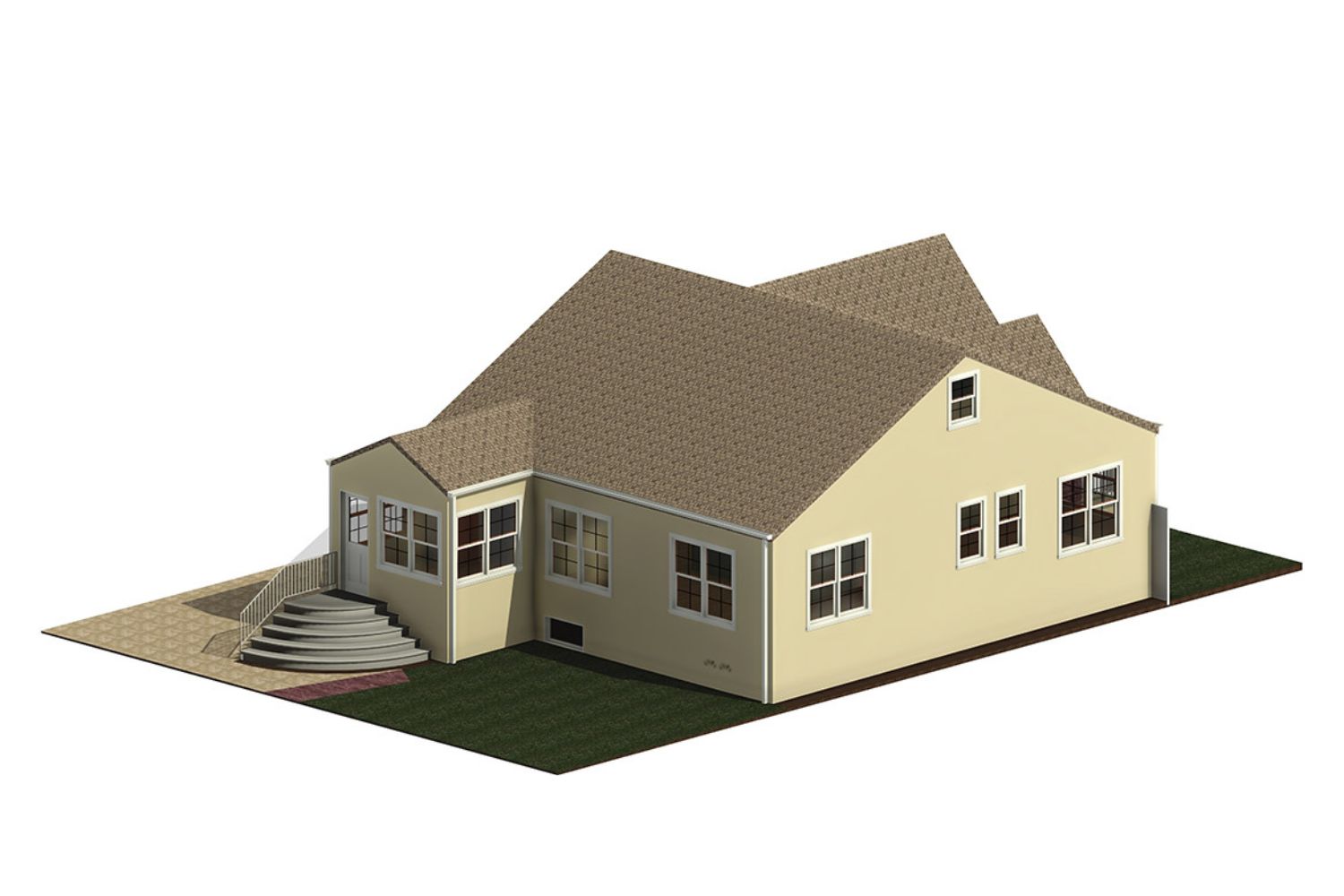

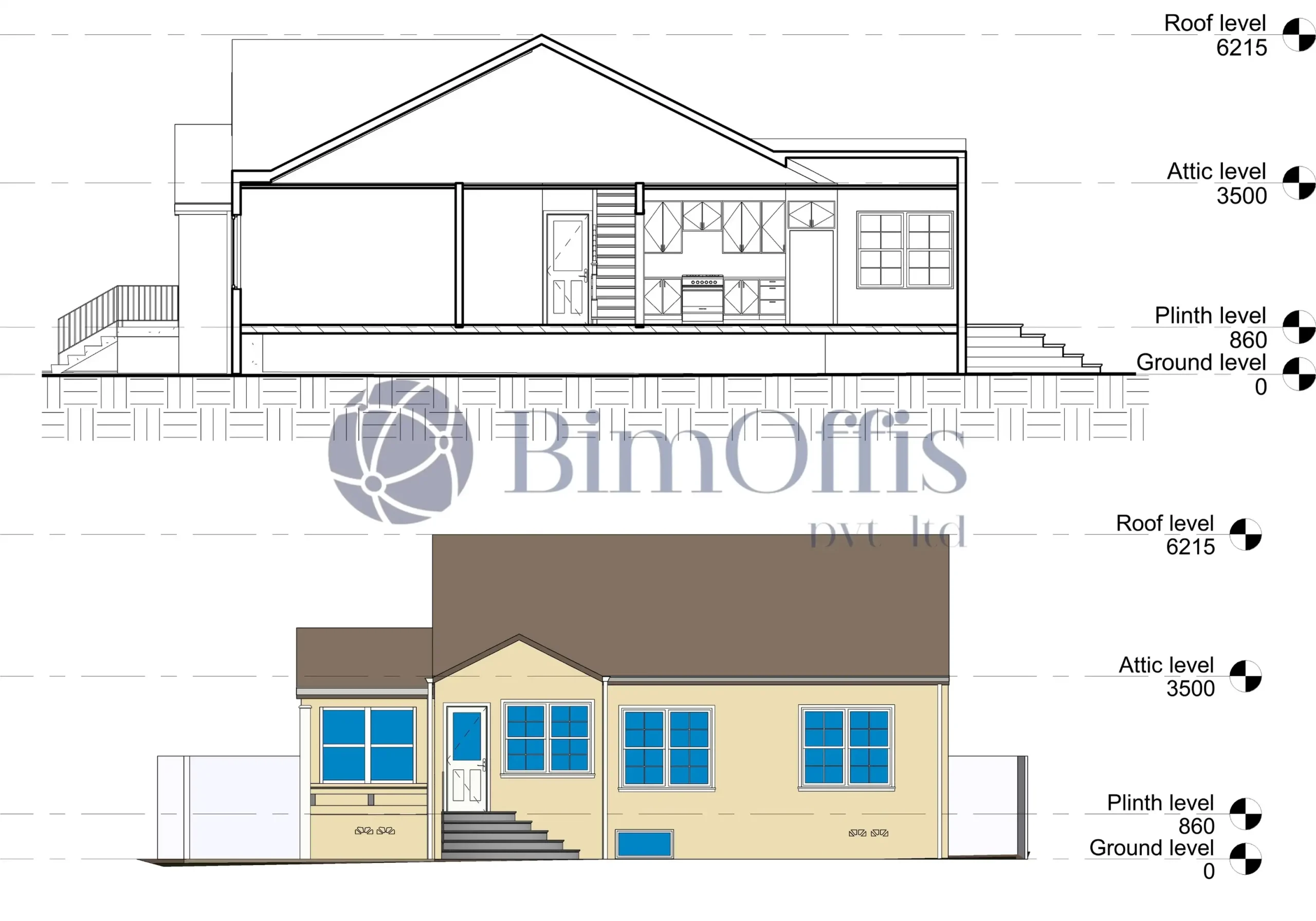

- Accurate 3D Revit model supporting redesign and renovation
- Conflict-checked and coordinated architectural BIM output

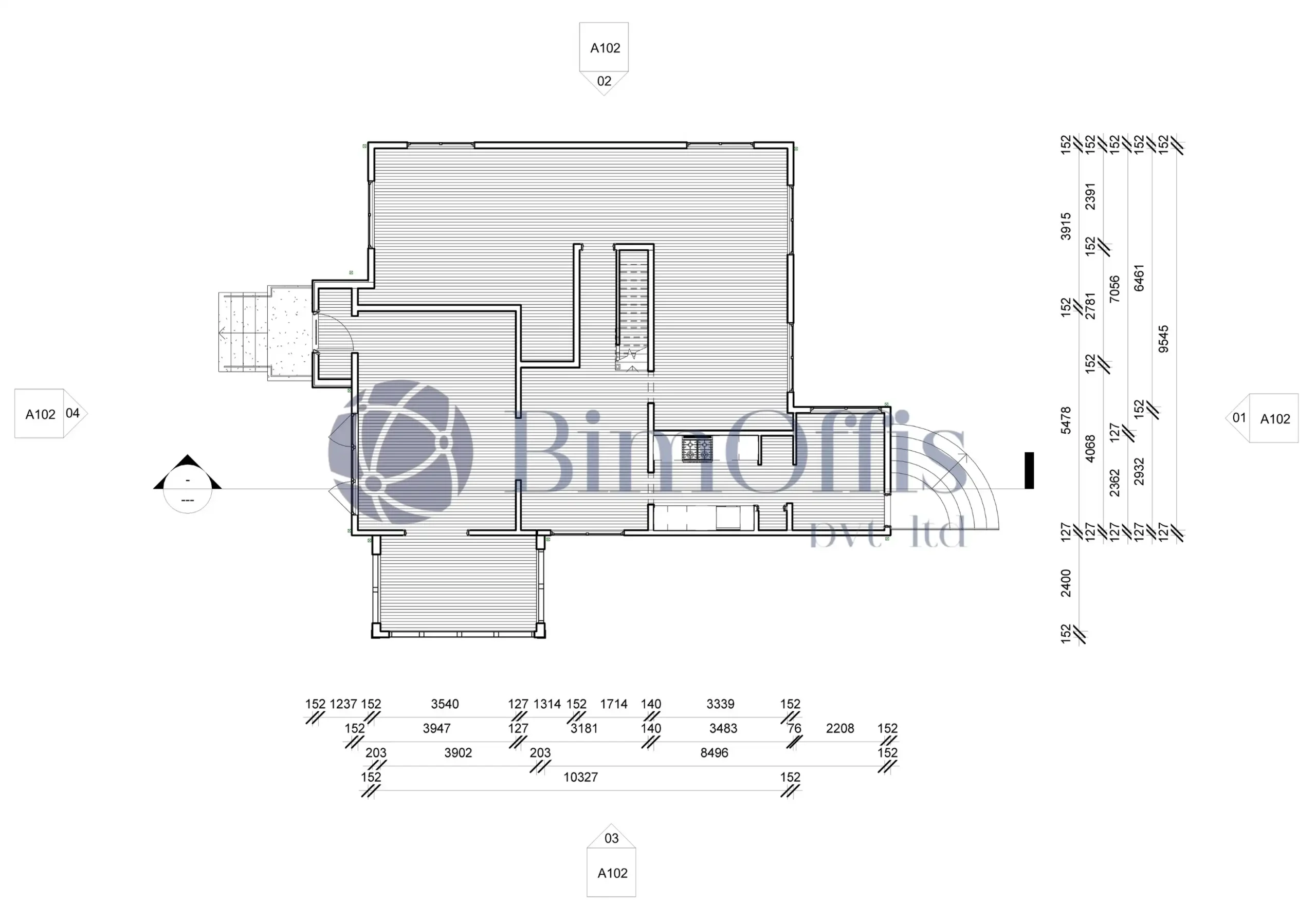

- Clear drawings and SOPs enabling smooth on-site and off-site execution
Project Samples.
