Bridge Infrastructure
Project Overview
Structural BIM for Bridge Infrastructure
For this bridge infrastructure project, the client needed a highly accurate structural BIM model for the bridge substructure, based on the available 2D drawings. The main requirement was to convert these drawings into something more detailed and reliable for construction use.
From 2D Drawings to Detailed BIM Model
Our team developed a detailed LOD 400 structural BIM model using Autodesk Revit. The focus was on making sure every element was clearly defined, especially when it came to reinforcement detailing and construction-level accuracy.
Built for Real Construction Needs
Rather than just creating a model, we made sure it could actually be used on-site. The final output supported construction-ready documentation and helped improve clarity for the execution team.
Scope of Work
CAD - BIM
Total Area
Not Disclosed
Services
Structural
Softwares Used
AutoCAD, Revit, Navisworks
Sector
Infrastructure
LOD
400
Ready to Work with us?
We establish long-term business relationships with our clients and are
committed to complete customer satisfaction. We would love to know
about your next project.
Project Challenges
Limited Project Inputs
The project was provided only with 2D structural drawings, without design reports or calculation data, requiring deep technical interpretation of design intent.
Complex Reinforcement Detailing

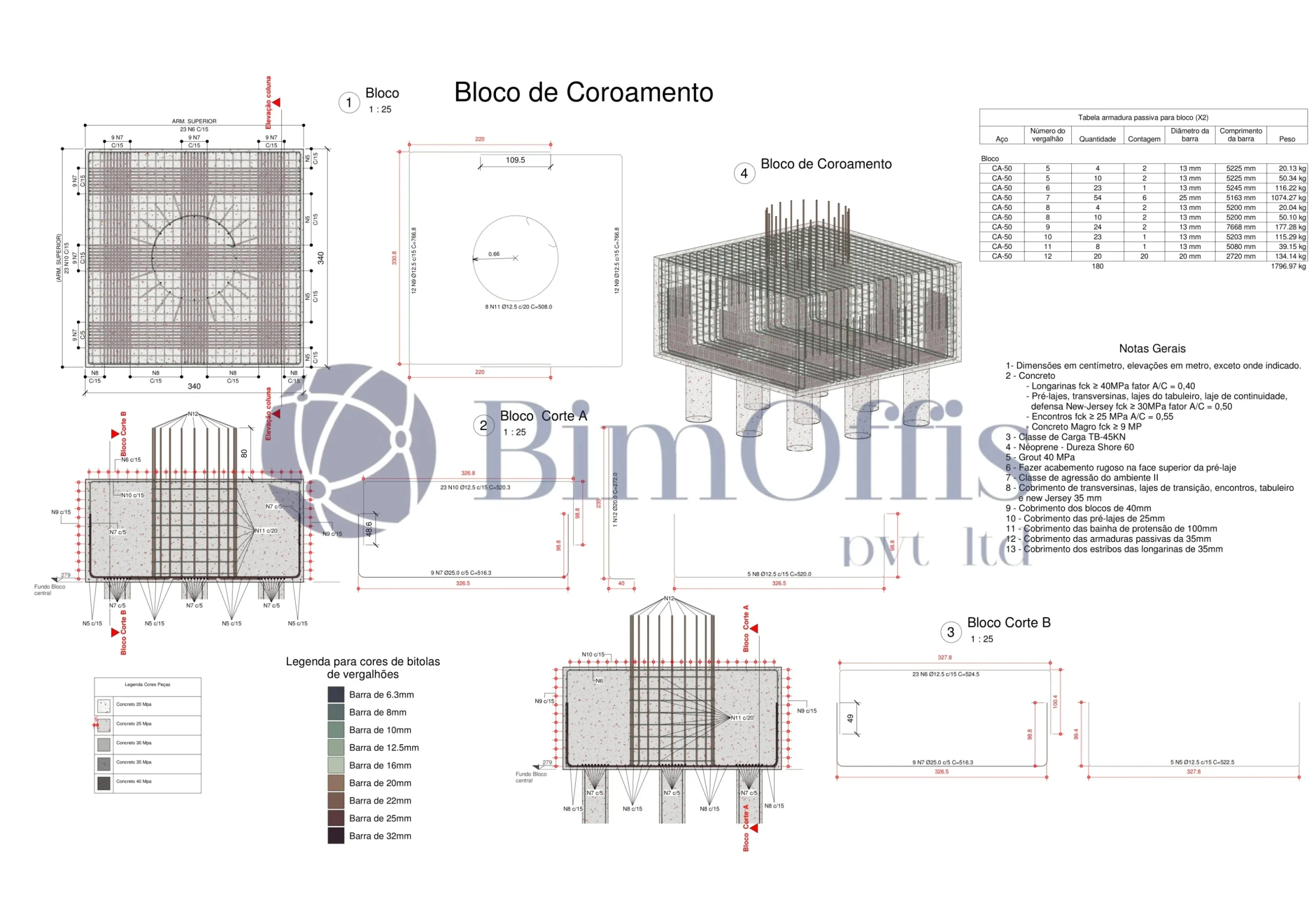

Dense reinforcement zones in pile caps, columns, and bridge supports demanded highly accurate modeling of bars, stirrups, anchorage, and cover requirements.
Coordination Between Structural Elements
Ensuring proper alignment and coordination between piles, pile caps, columns, and bearing levels was critical to avoid constructability issues.
High Accuracy Requirements
Infrastructure projects require millimeter-level precision, making modeling accuracy and detailing consistency a key challenge throughout the project lifecycle.
Drawing Interpretation Challenges
Translating 2D drawings into a fully coordinated 3D BIM model required careful interpretation of design intent and structural notes.
Time and Delivery Constraints
Strict project timelines required efficient workflows while maintaining high-quality BIM deliverables.
What We Delivered

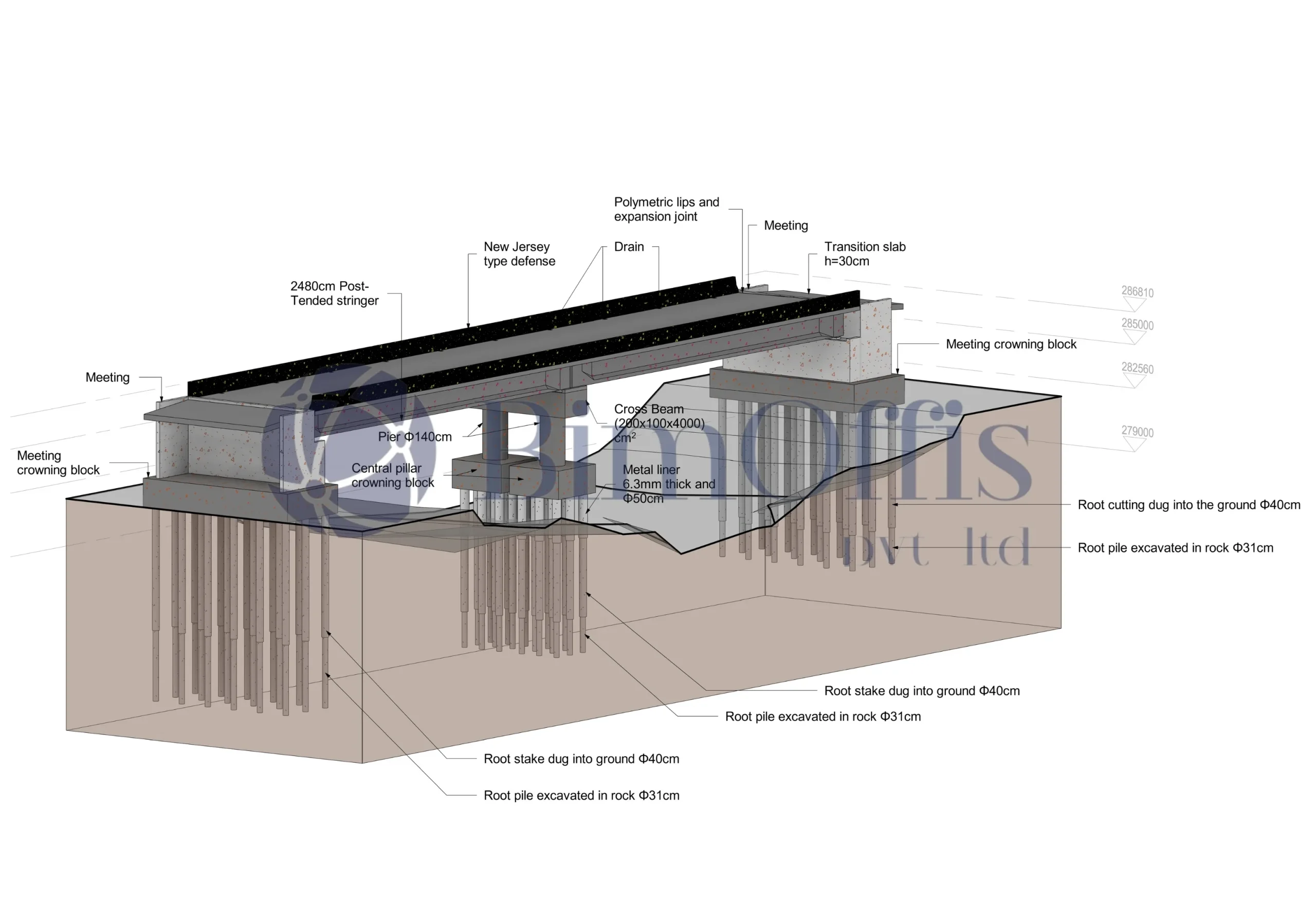

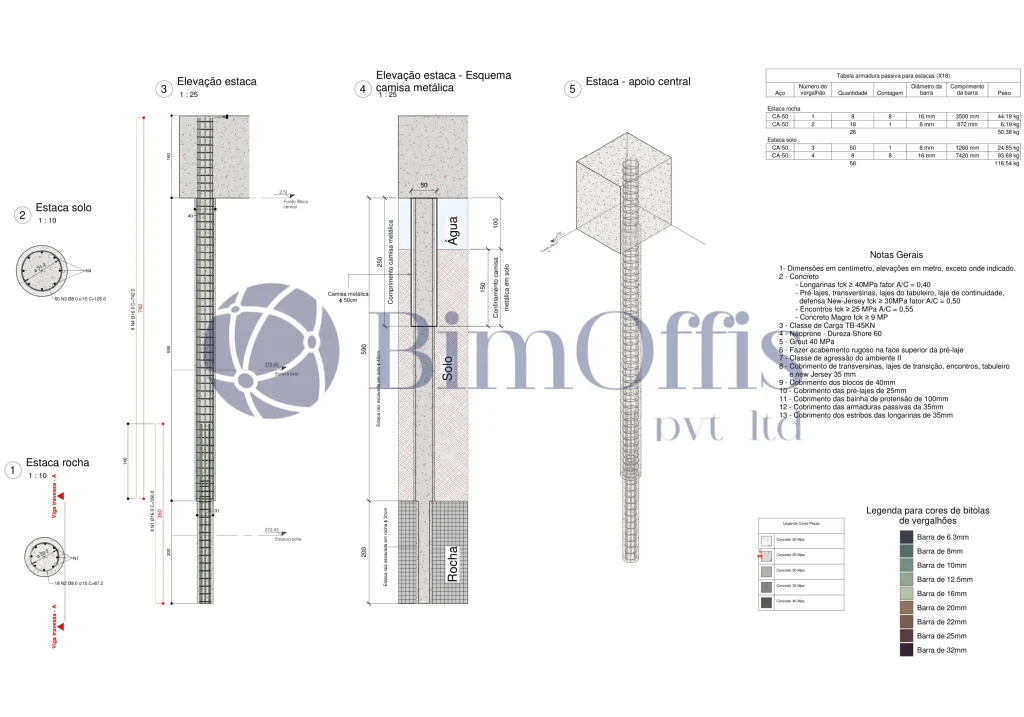

- LOD 400 Structural BIM model for bridge substructure elements including piles, pile caps, columns, and bearing supports

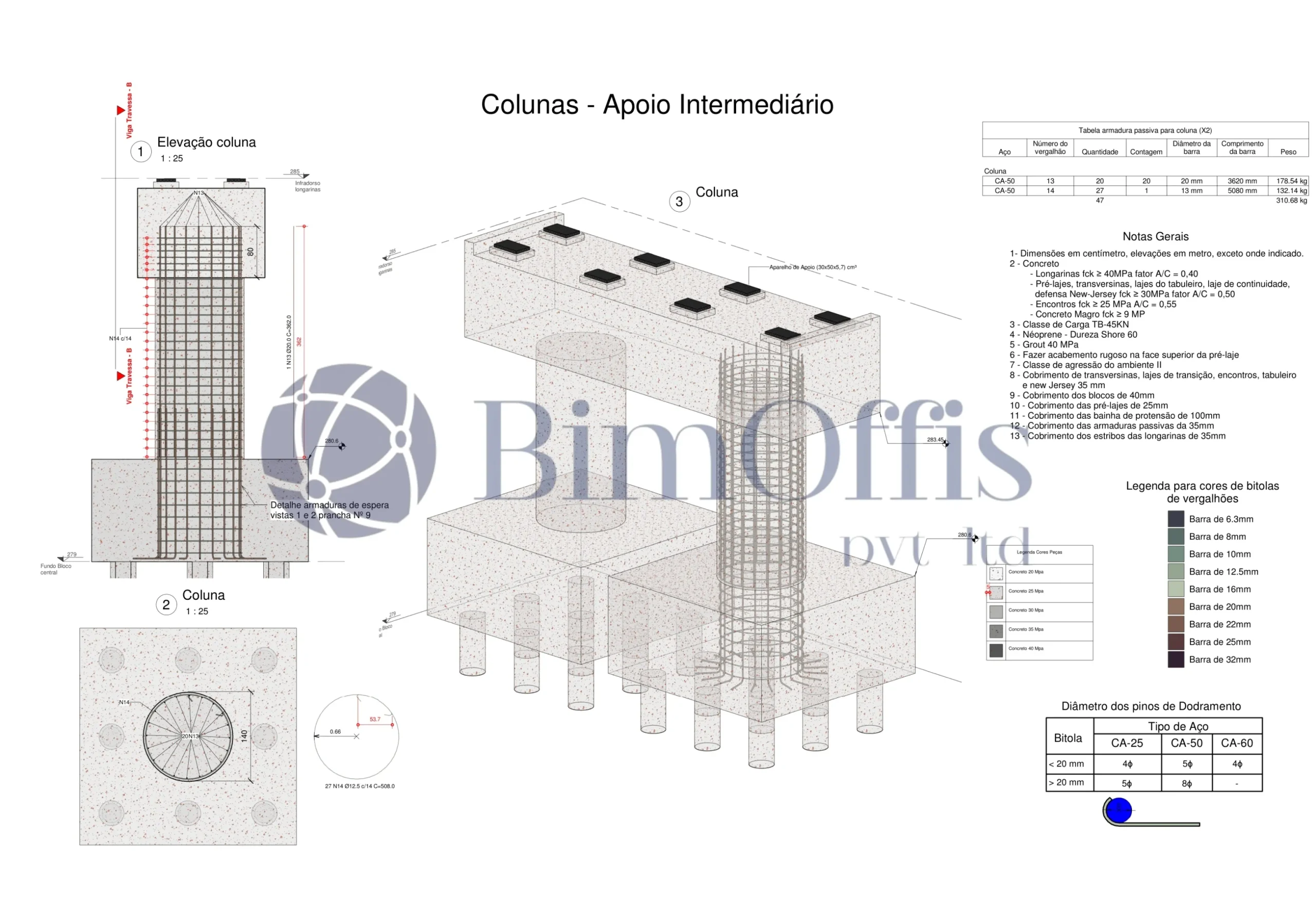

- Detailed reinforcement modeling with longitudinal bars, stirrups, dowels, and anchorage detailing

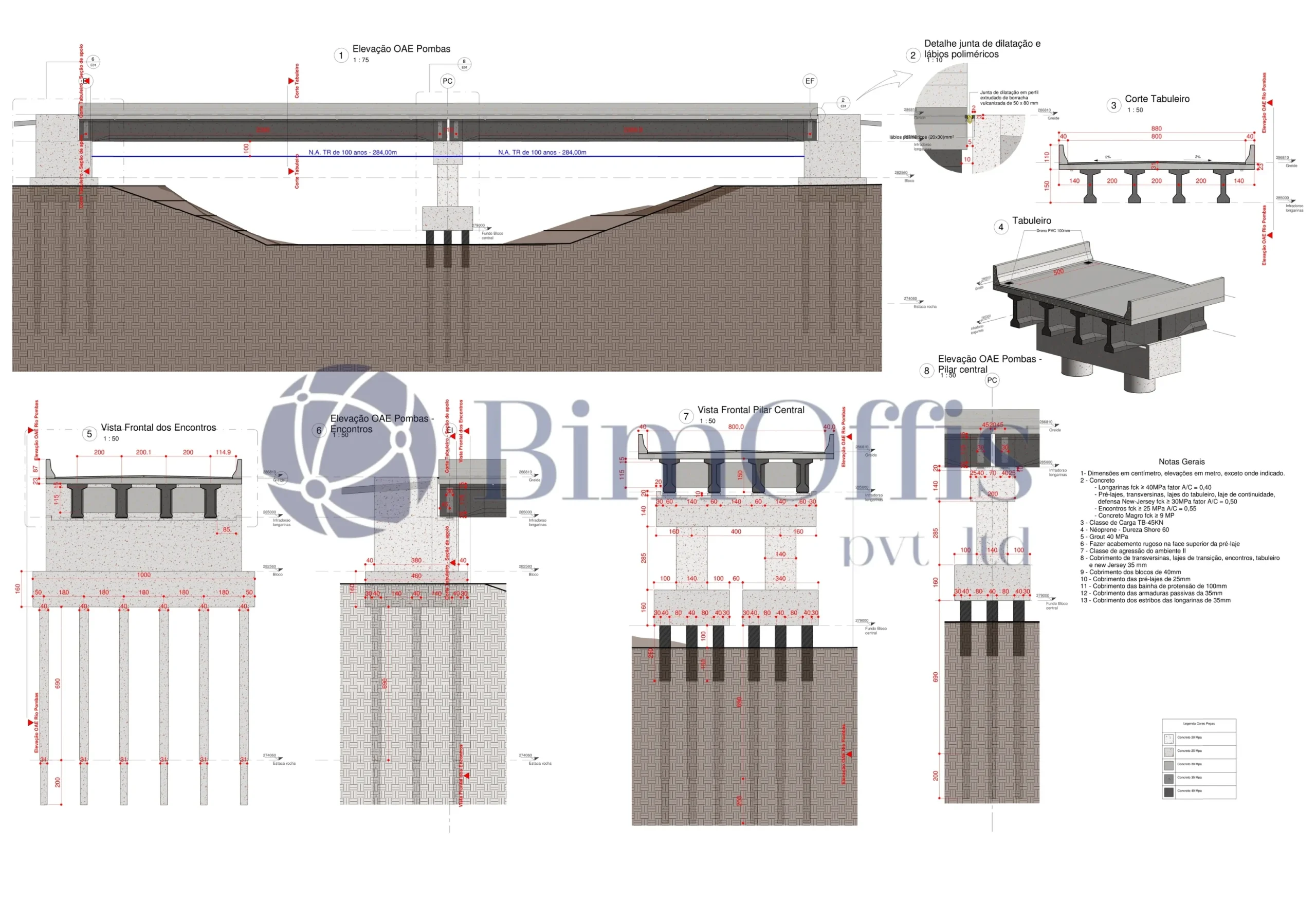

- Construction-ready structural drawings including plans, sections, elevations, and 3D views
- Reinforcement schedules, quantity take-offs, and Bar Bending Schedules (BBS) generated directly from the BIM model
- Fully coordinated and validated BIM outputs to ensure constructability and reduce on-site errors
- High-quality visualization and documentation to support contractors and site teams

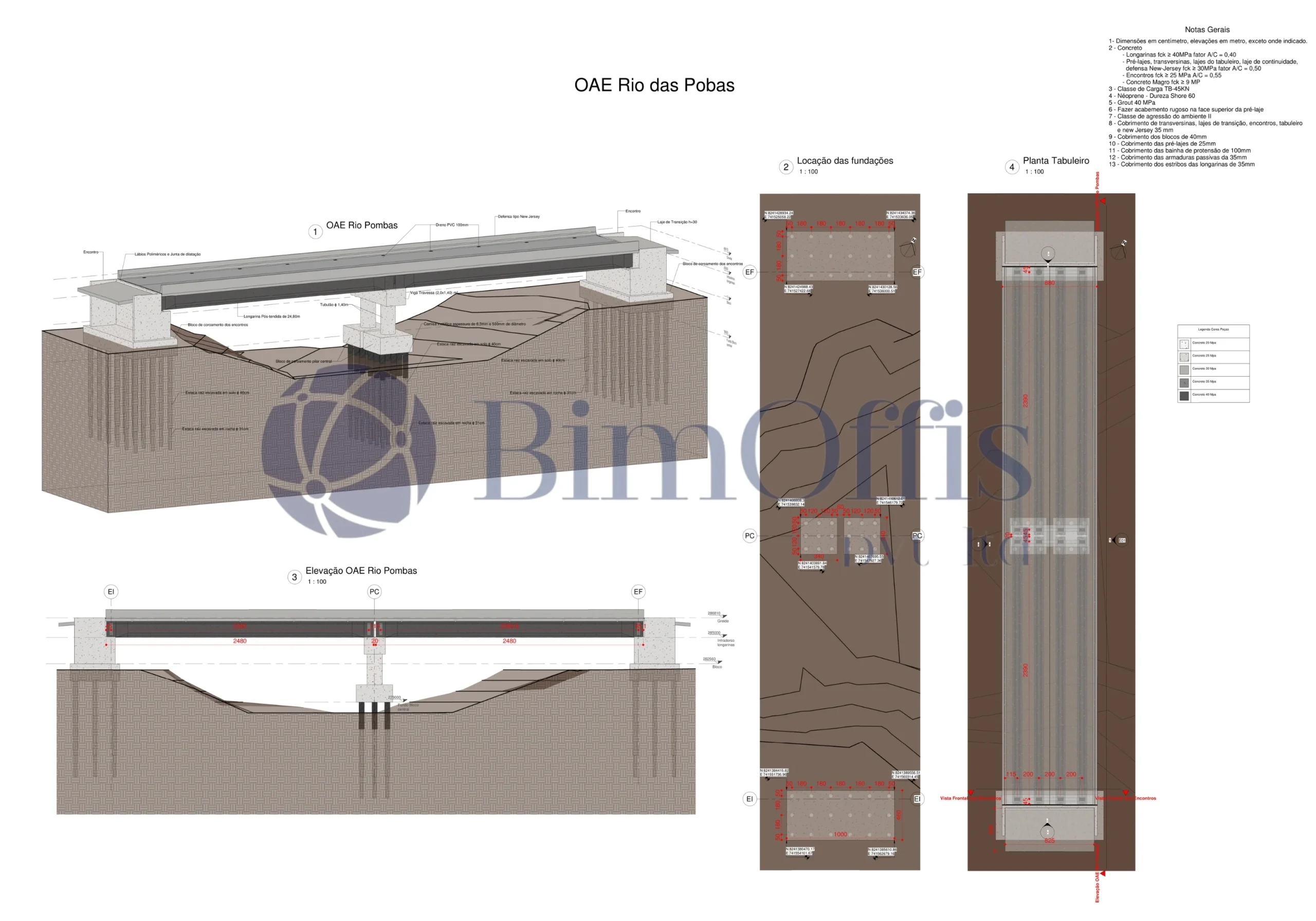

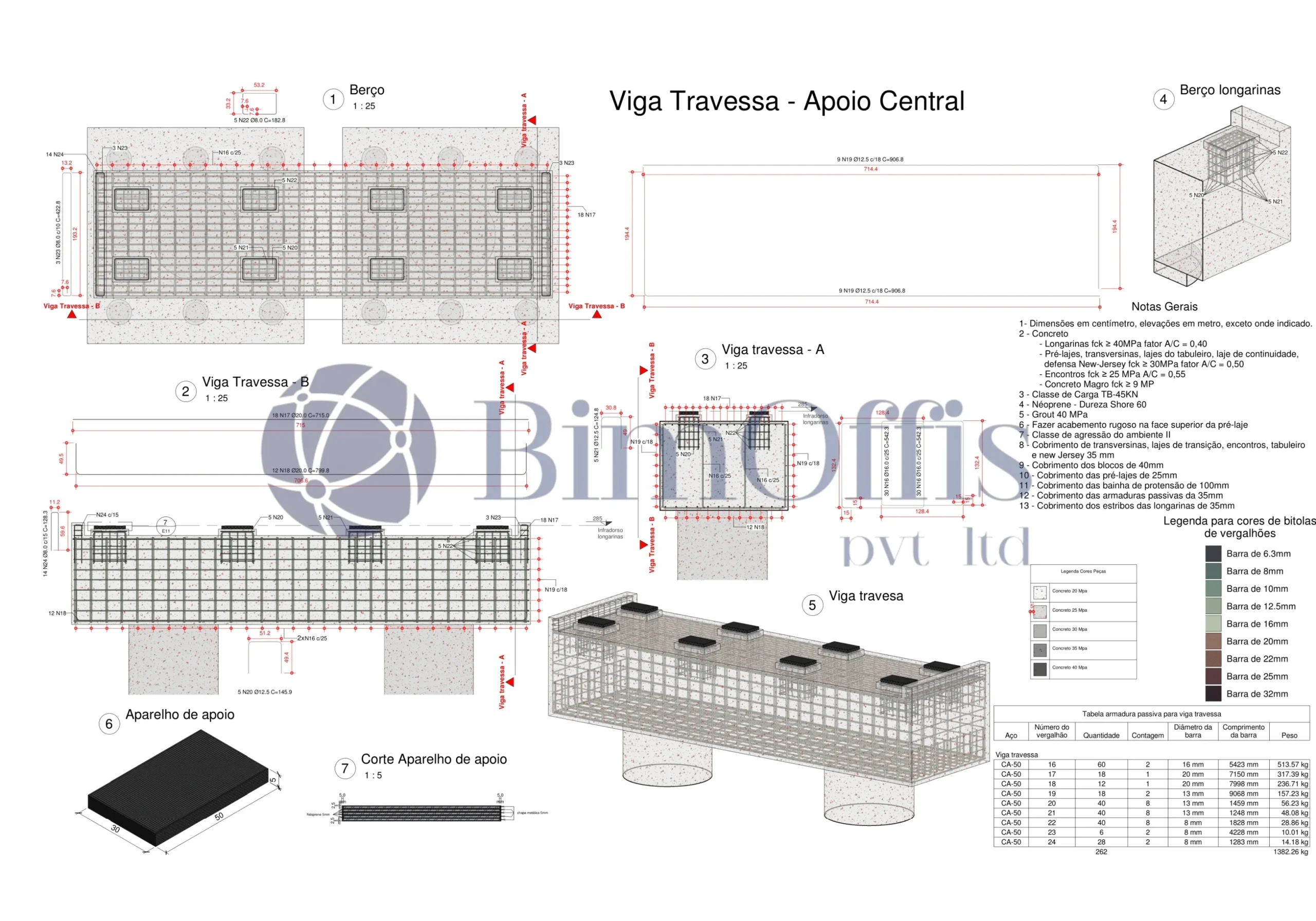

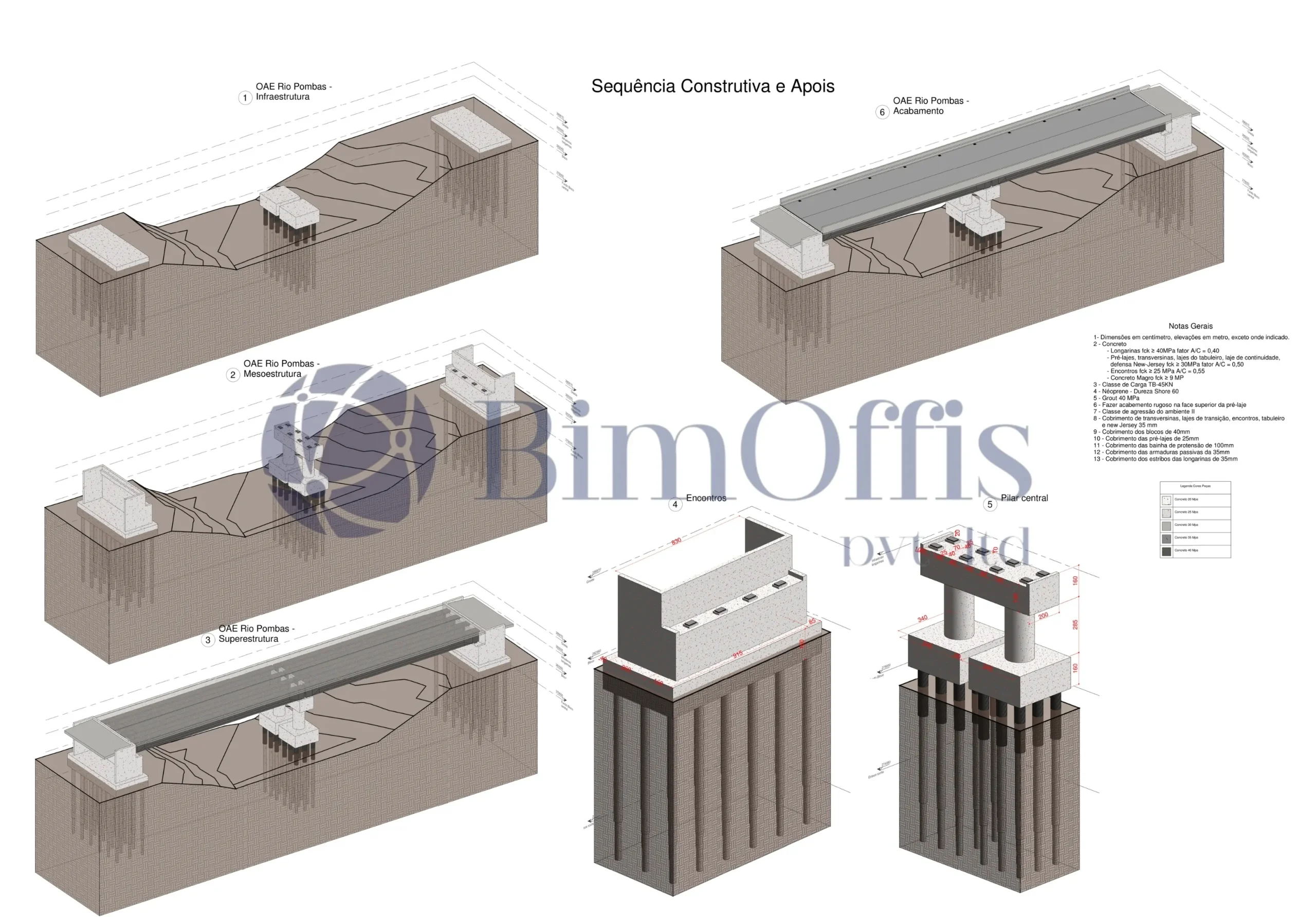

Project Samples
