BIM Work for PNTC Building
For the PNTC project, the client already had drawings and some site details, but everything felt a bit scattered. They needed a proper BIM model to bring it all together so the team could actually work with it more easily.
Building the PNTC Model

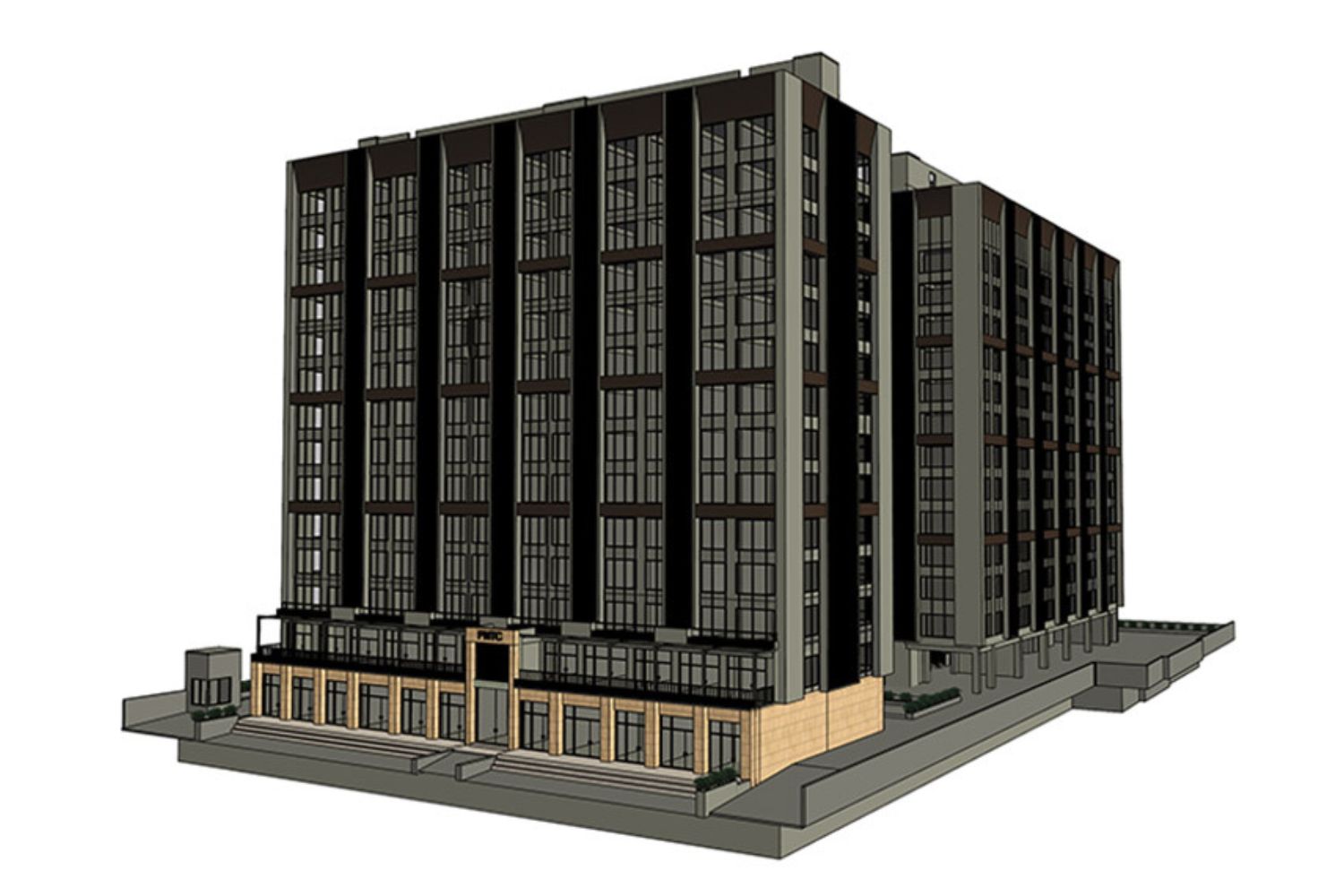

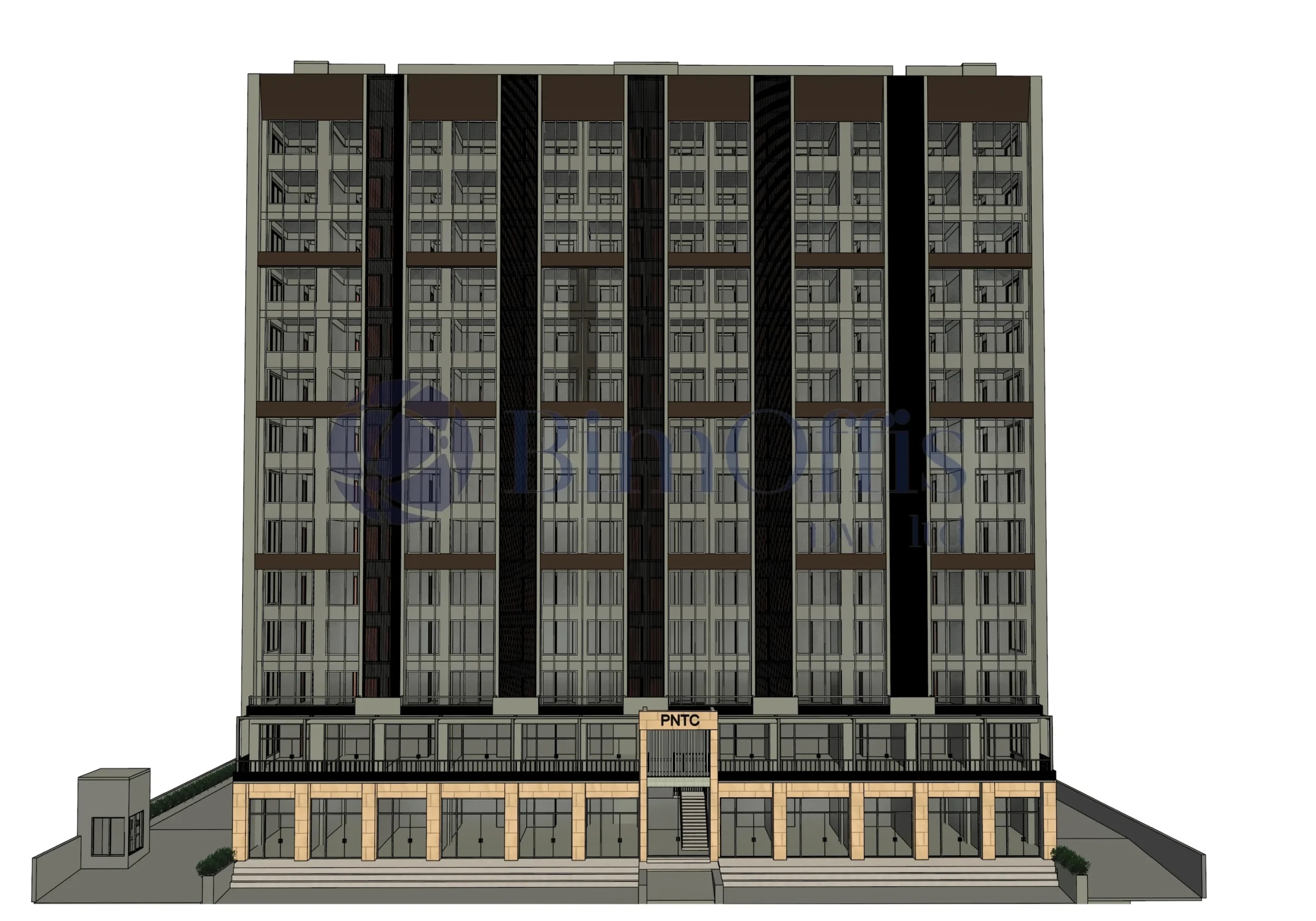

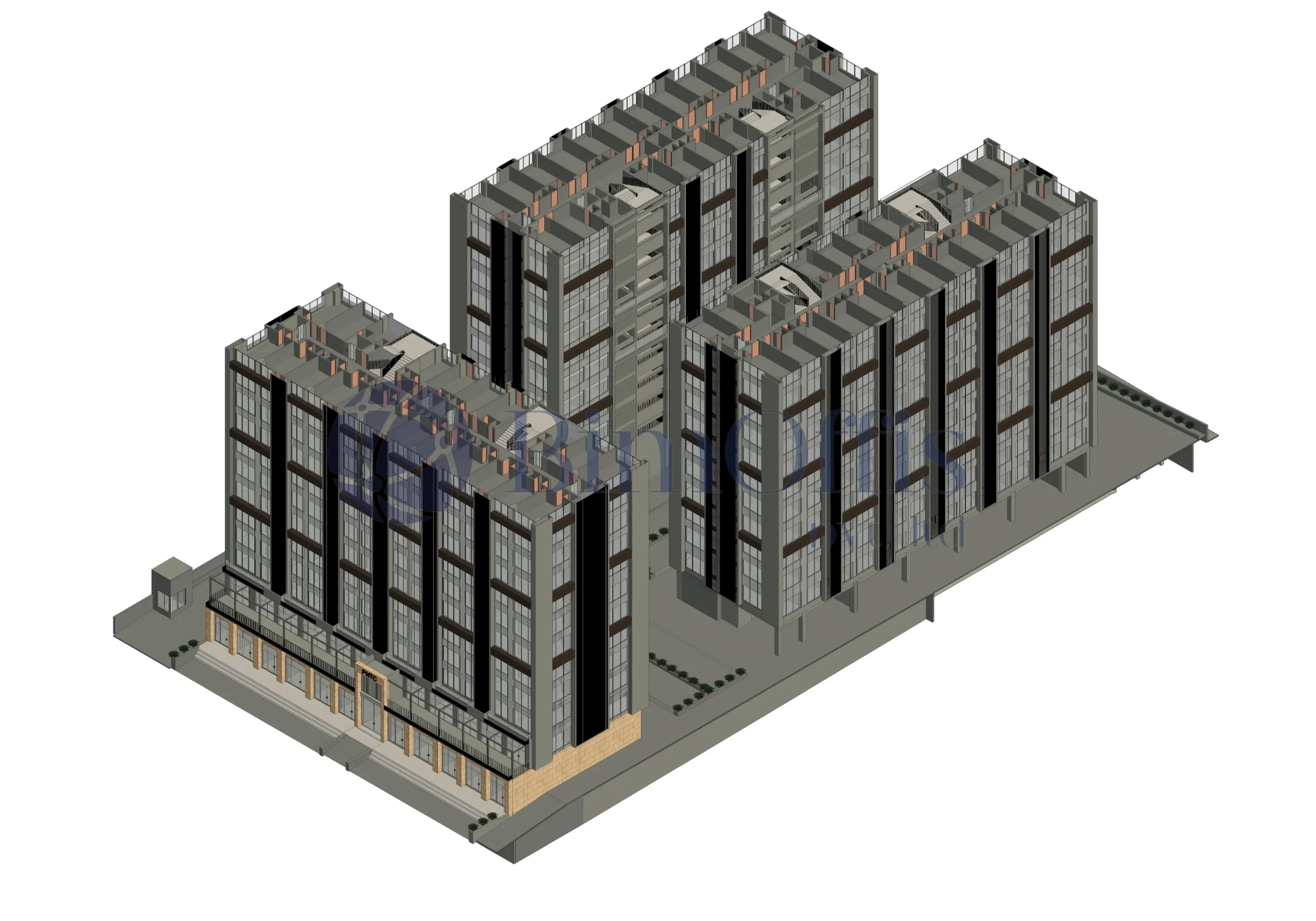

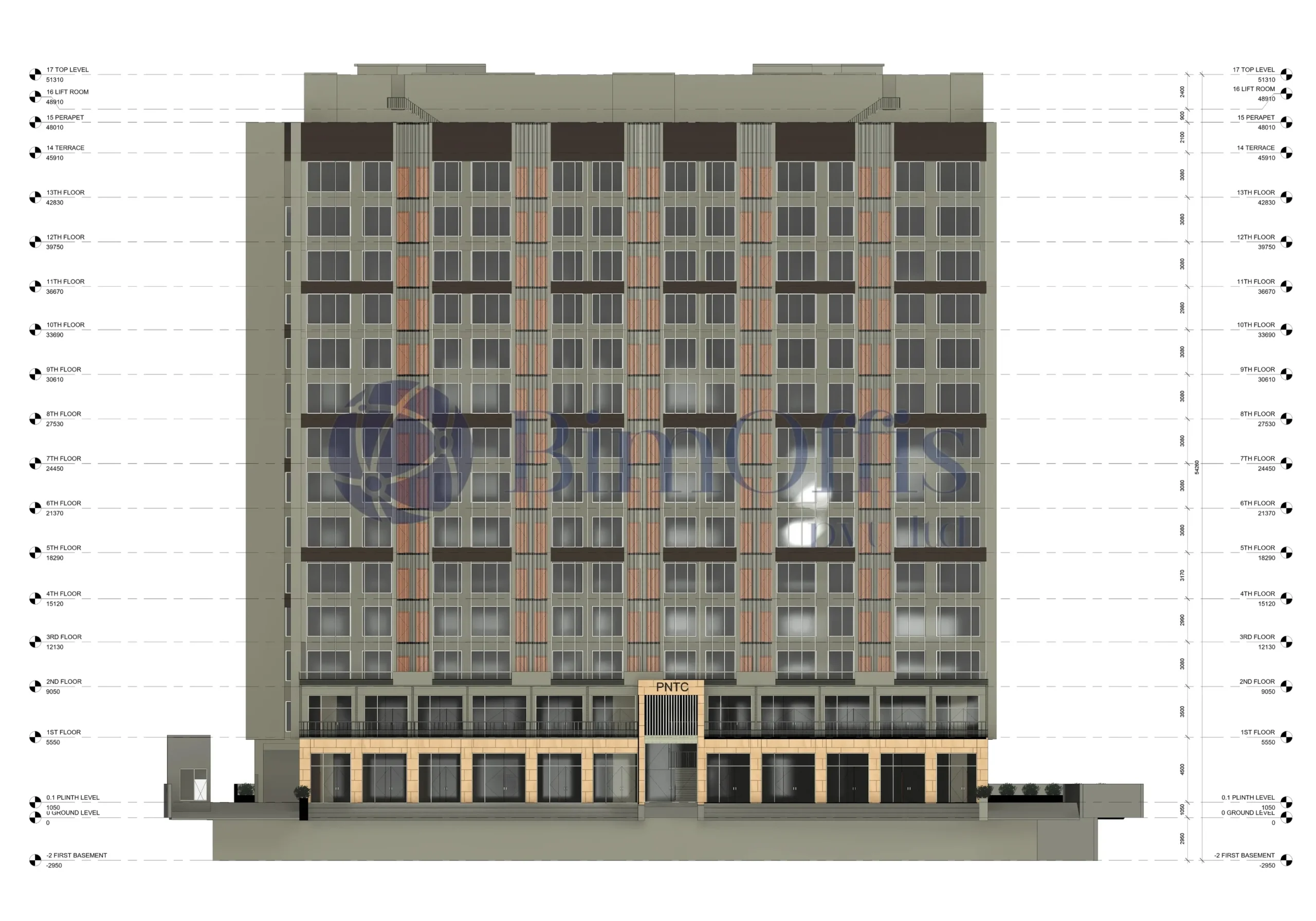

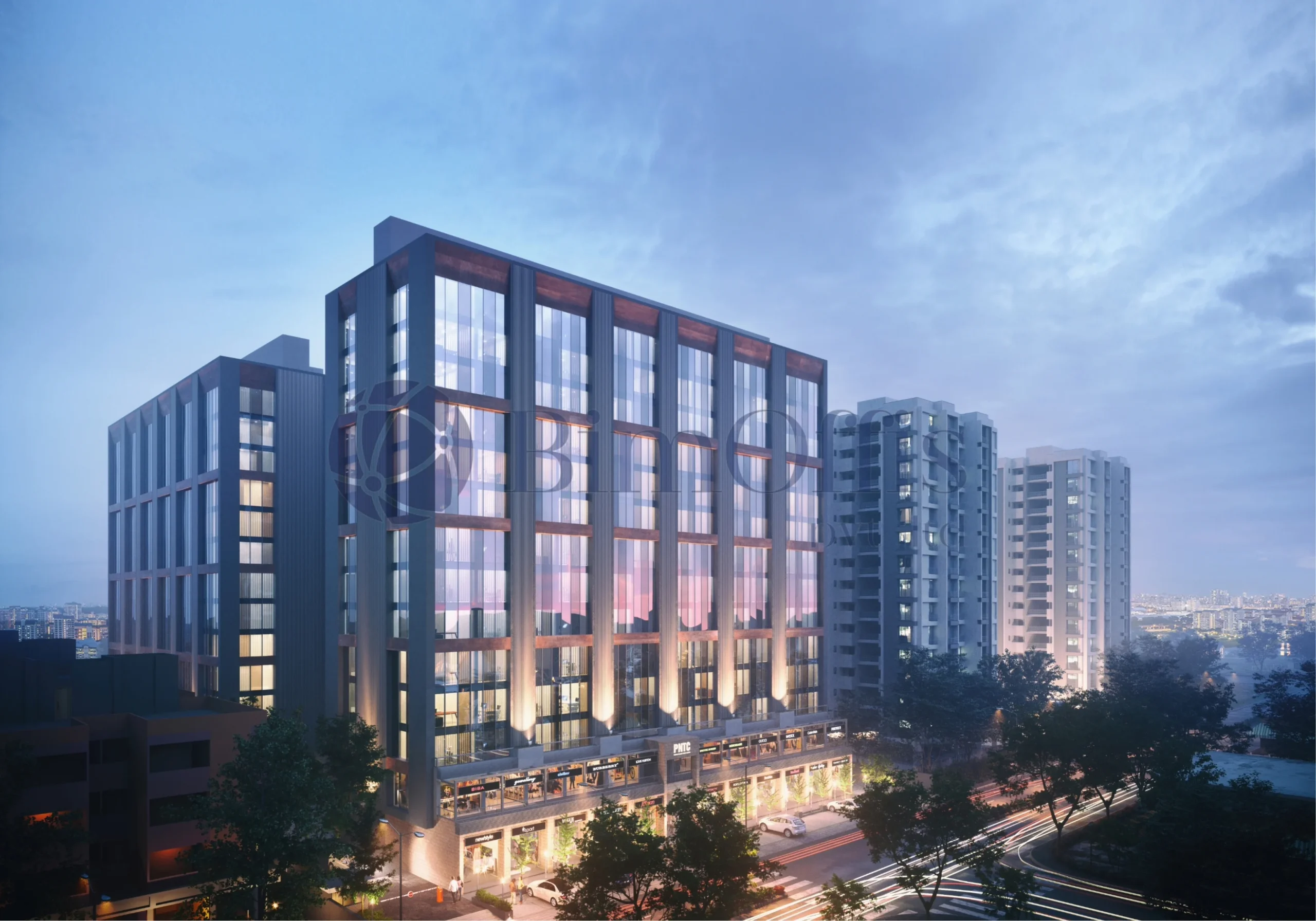

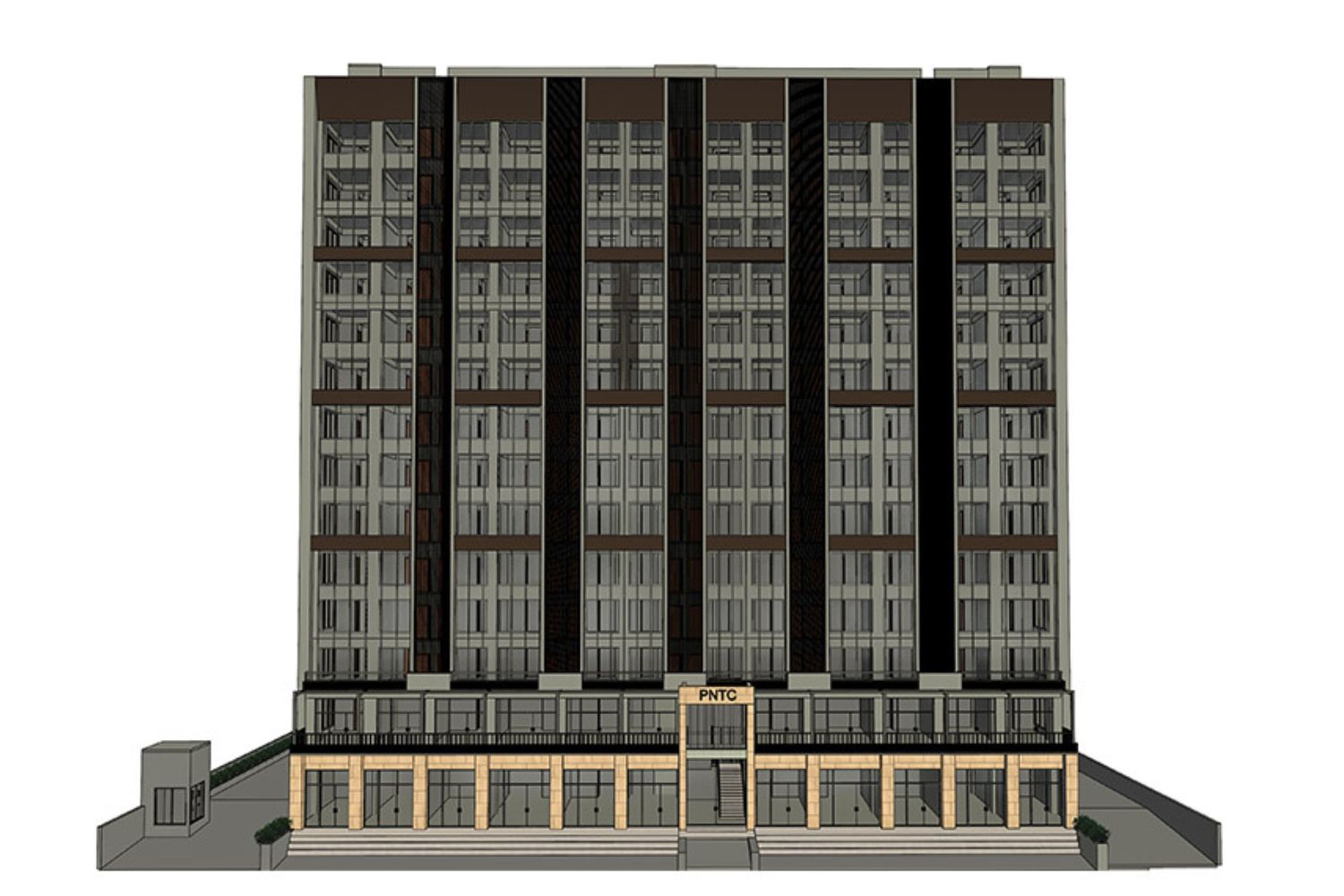

We worked on creating the architectural model in Autodesk Revit. Since it’s a 13-story building, there was a lot to manage, so the idea was to keep things clear and not overcomplicate the model.
Drawings and Coordination for PNTC

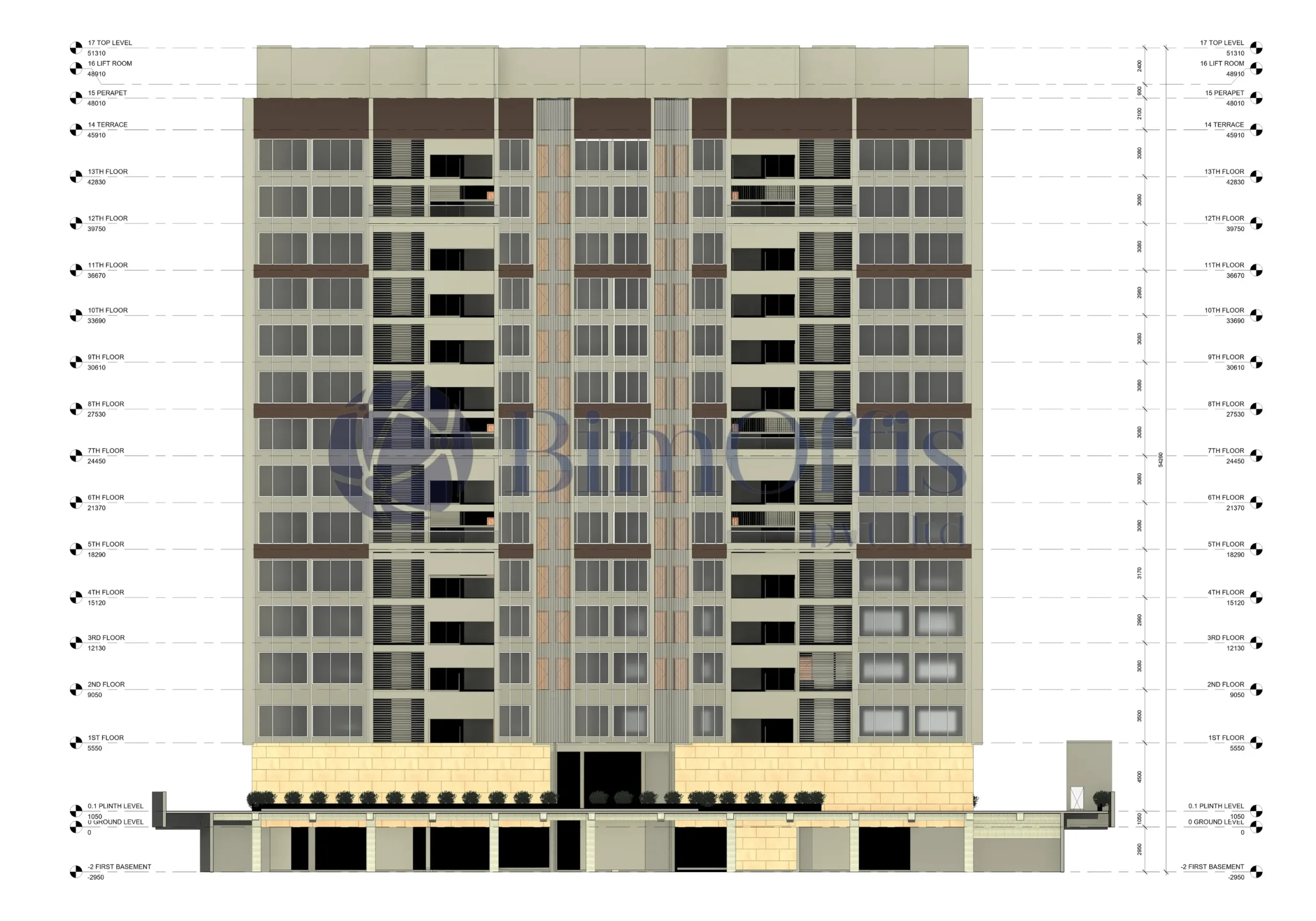

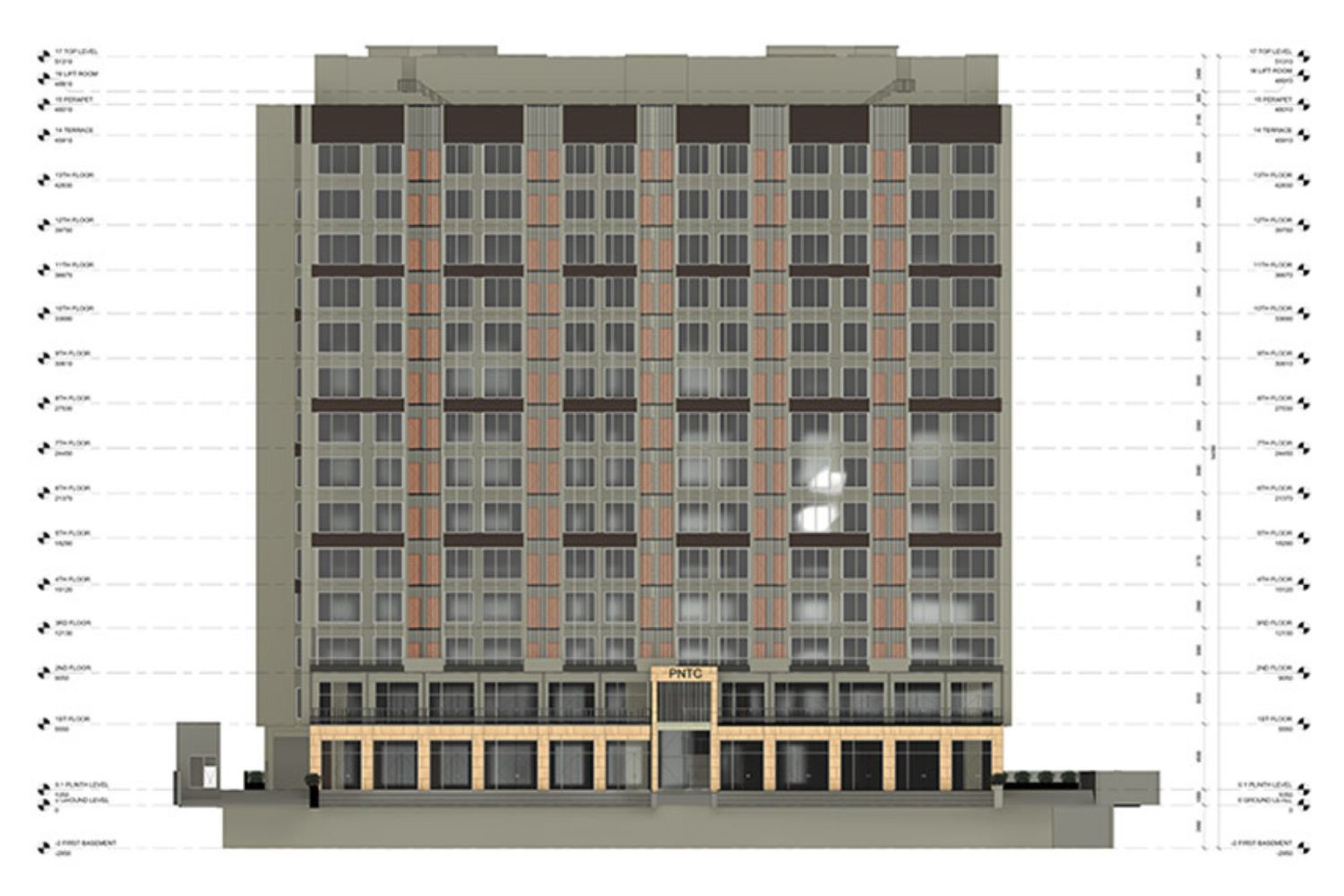

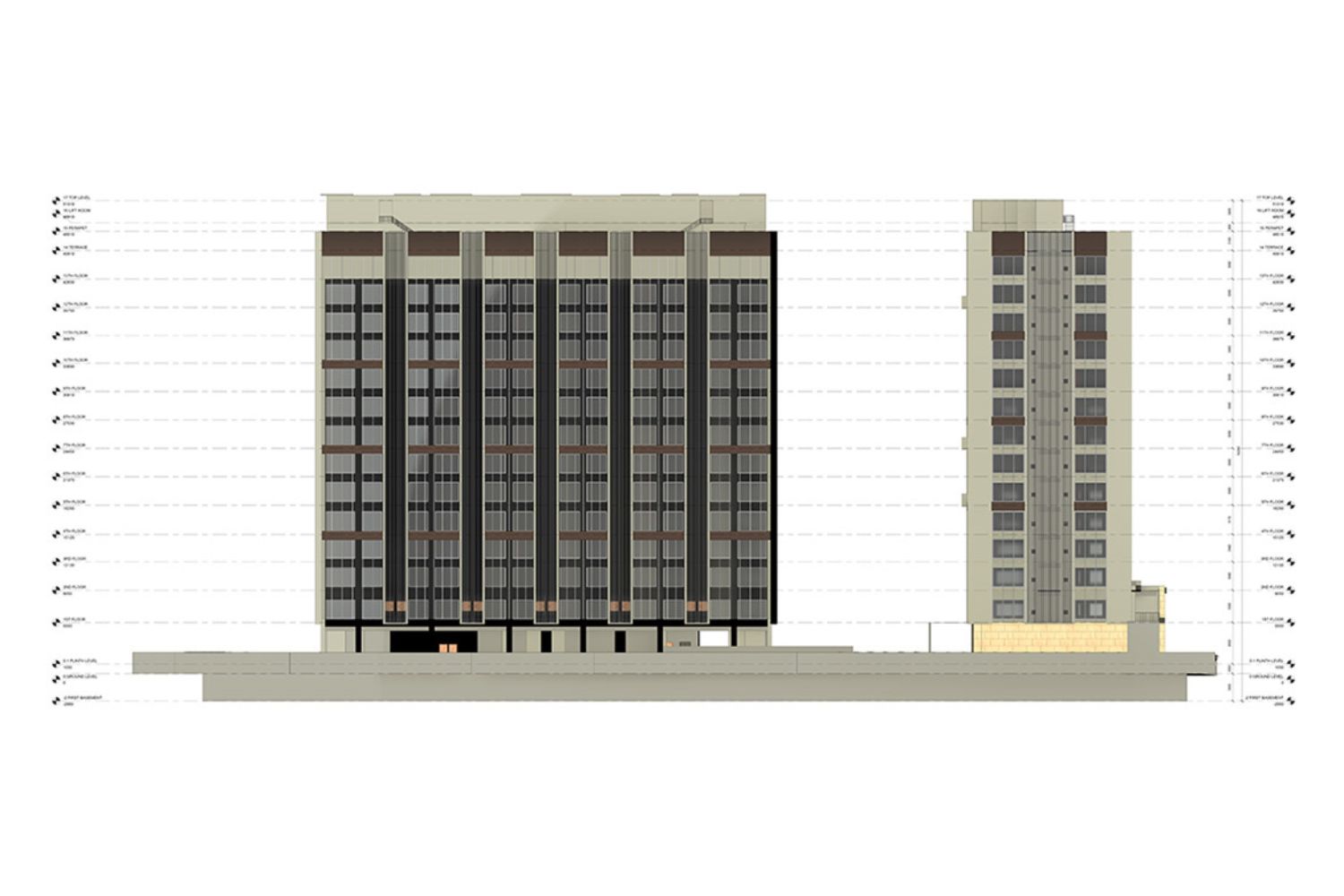

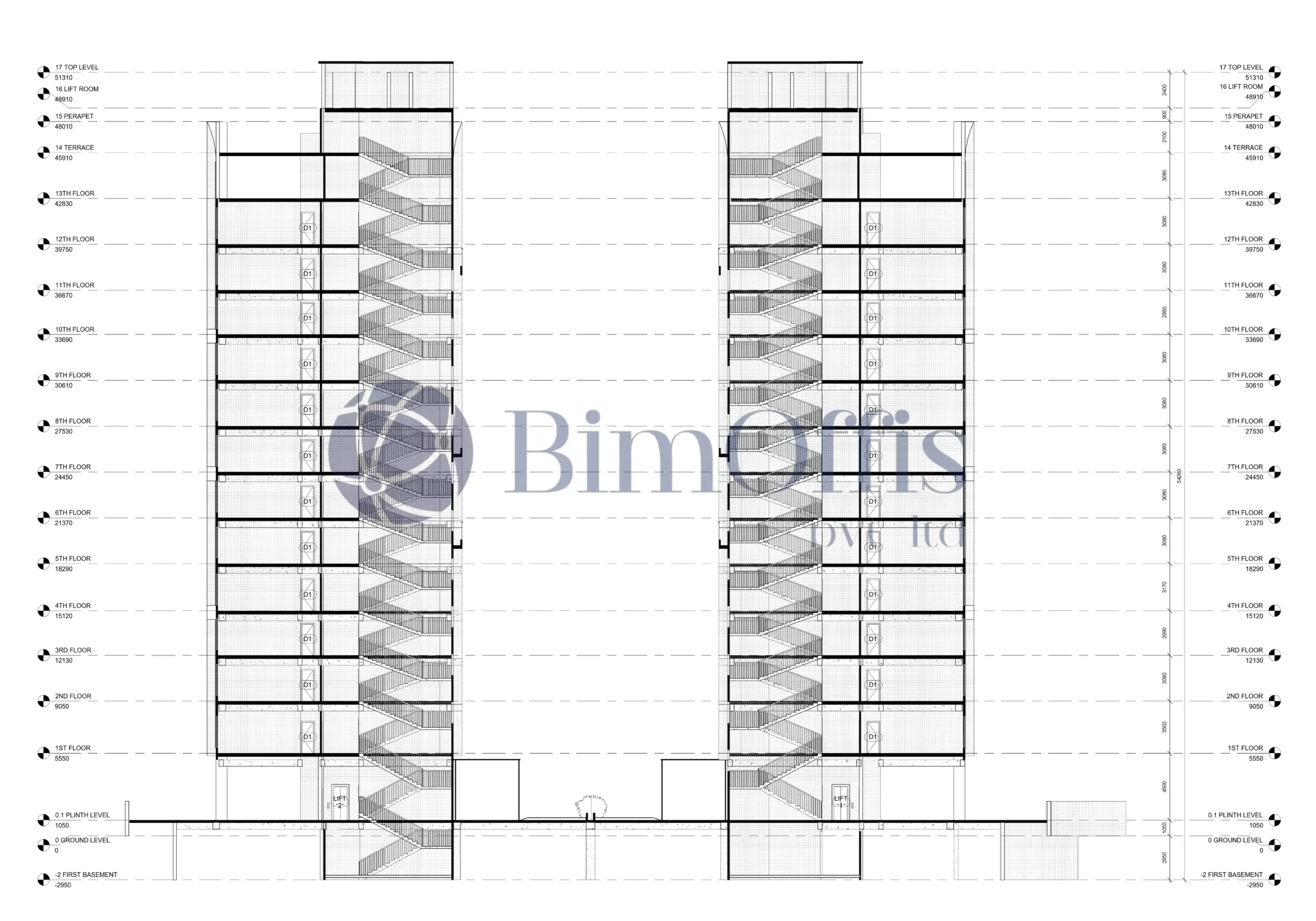

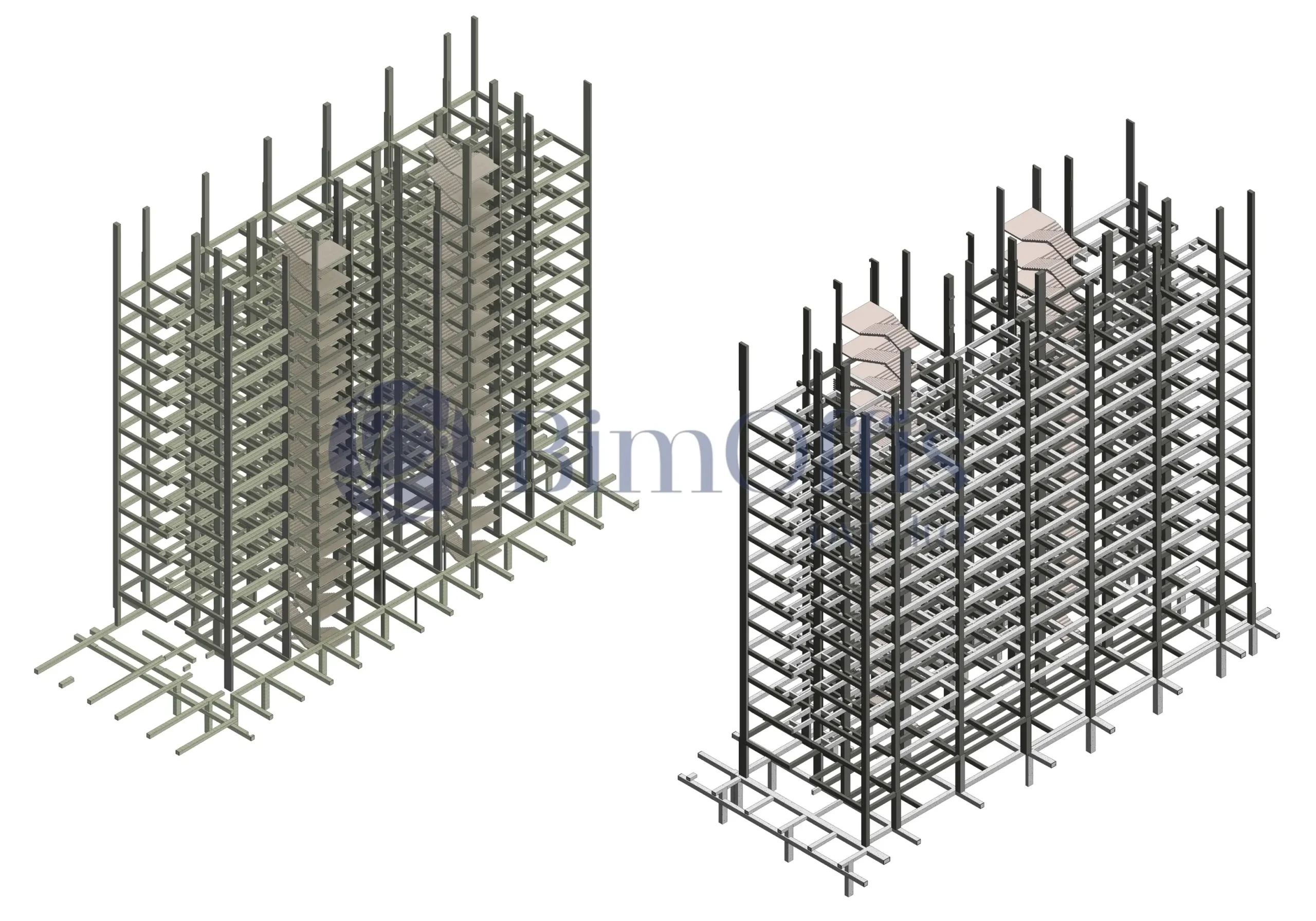

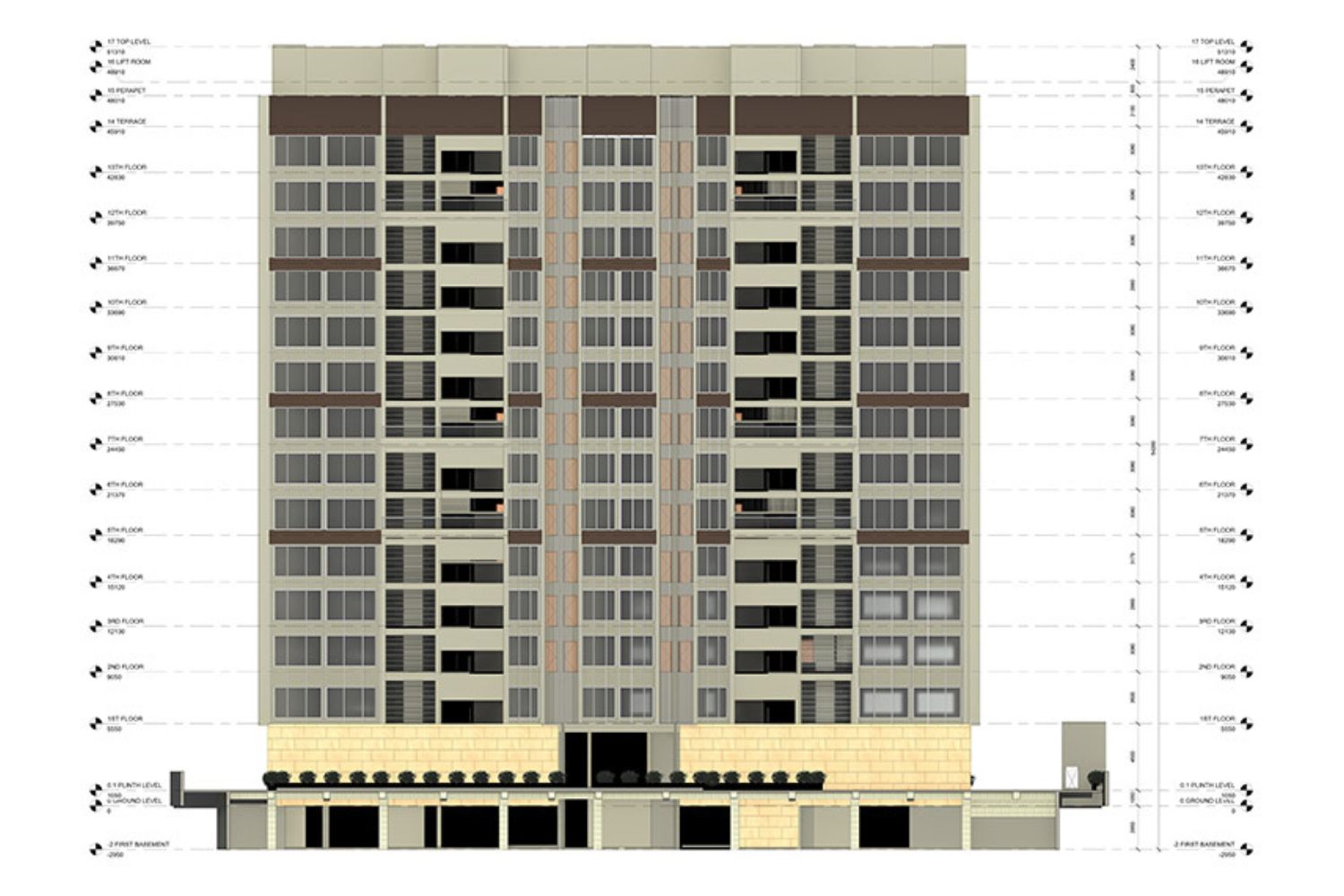

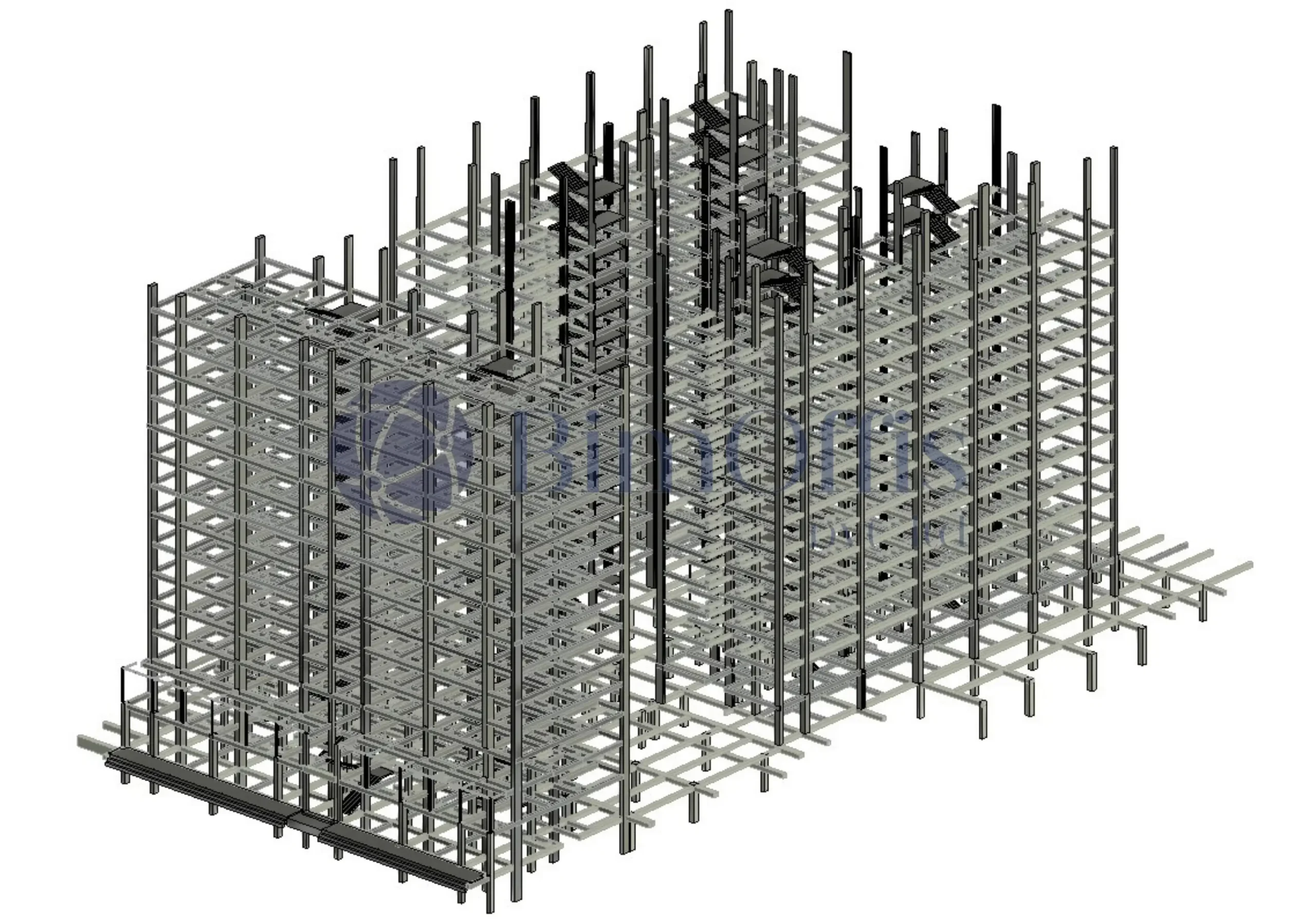

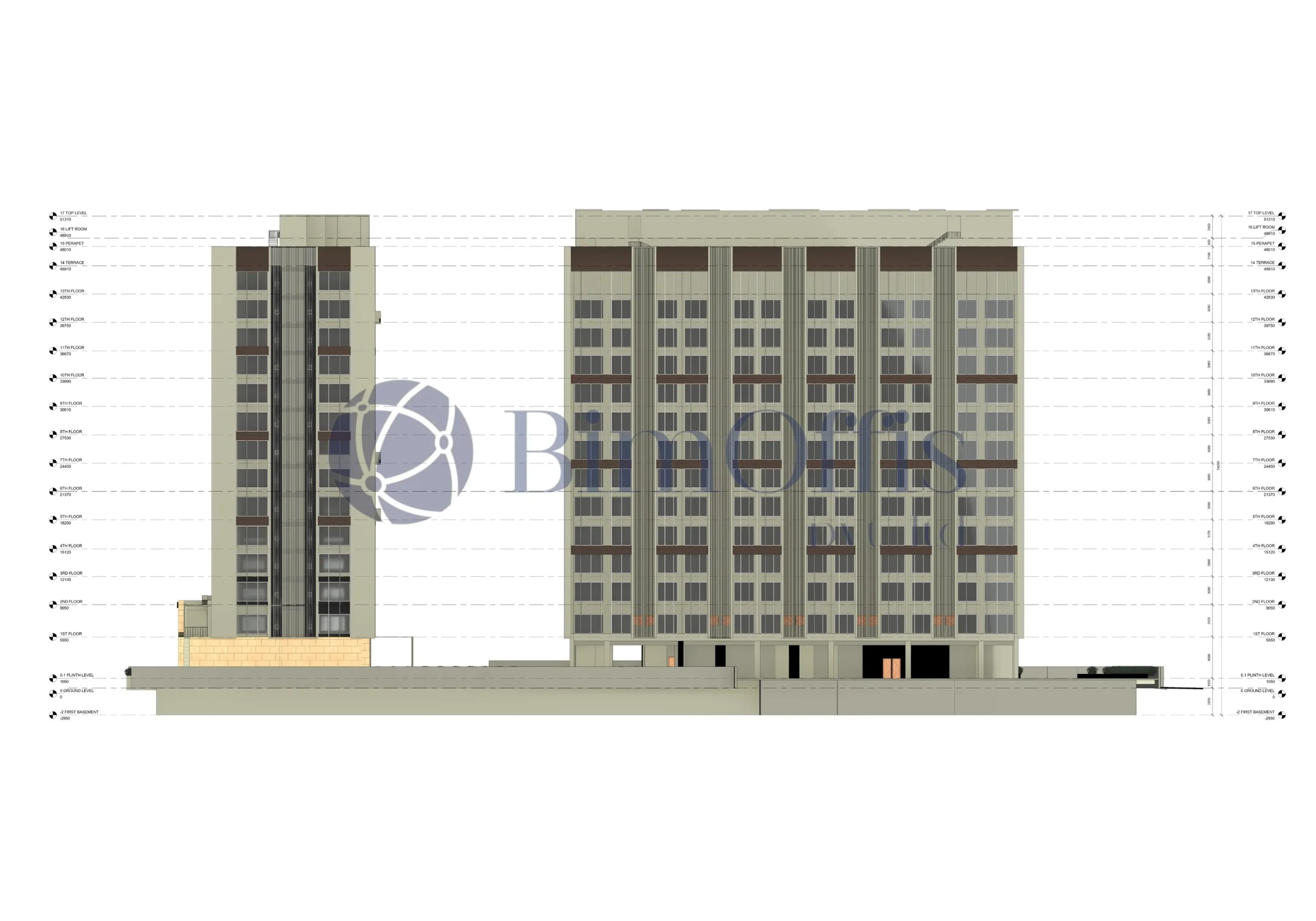

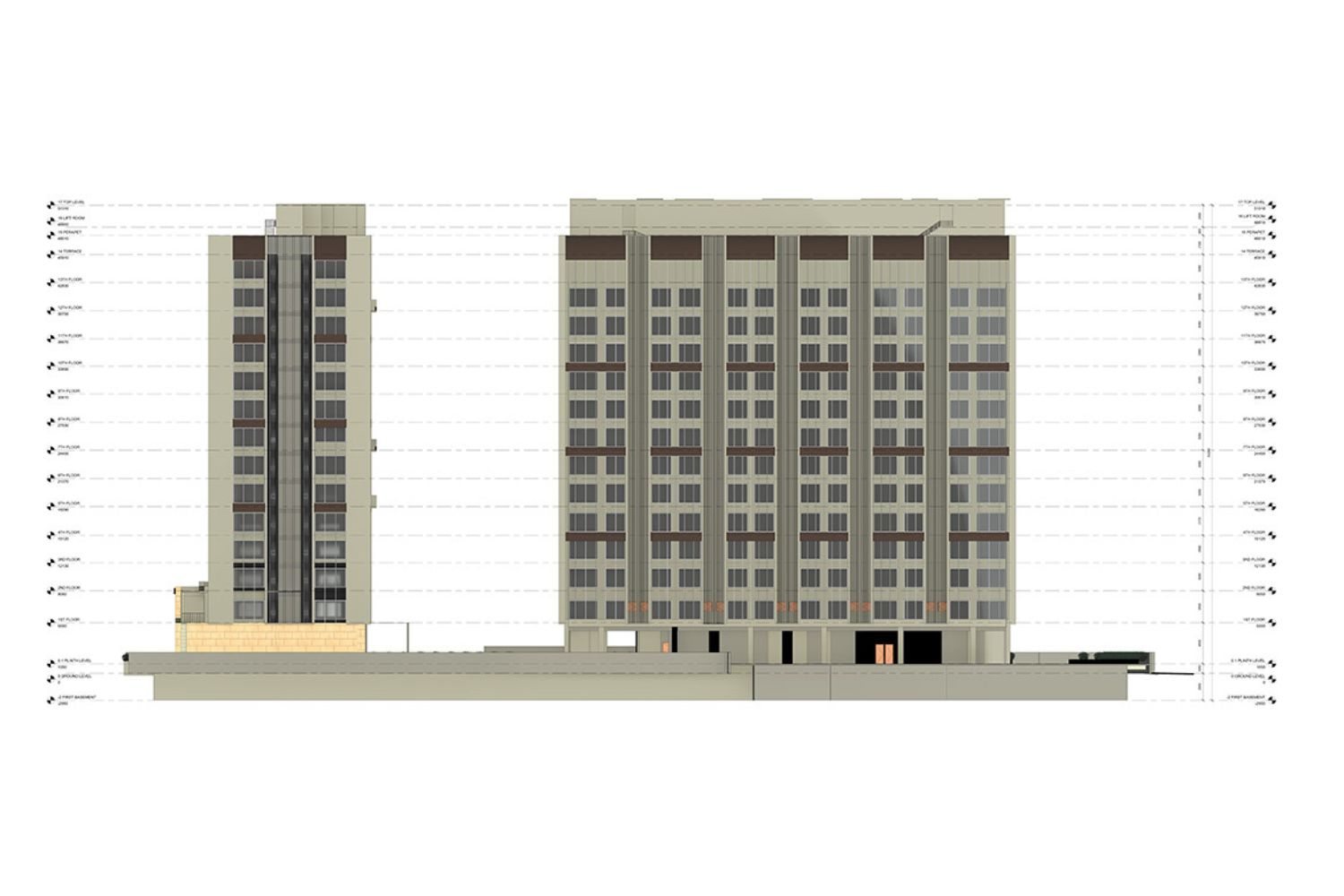

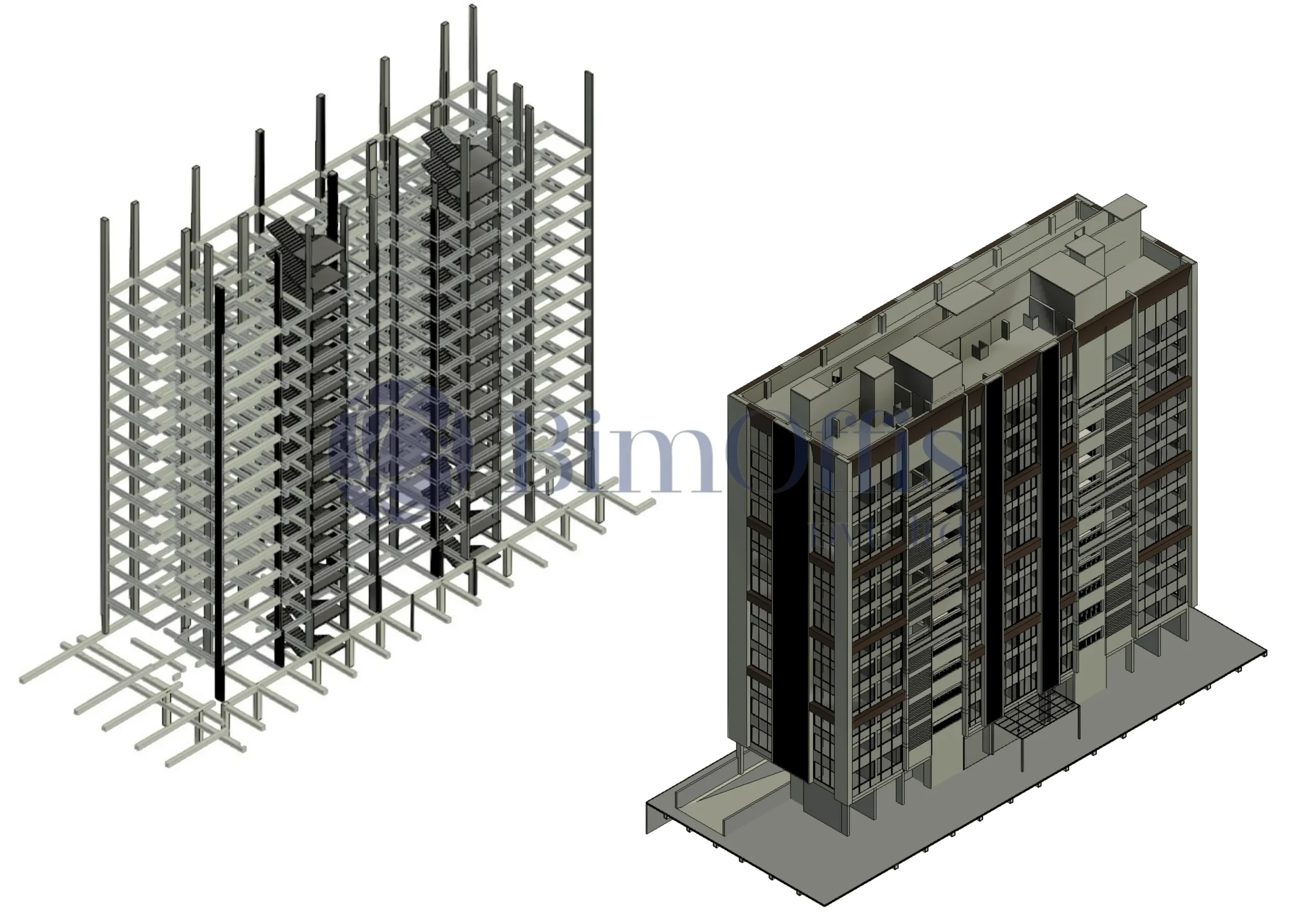

Along with the model, we also helped with construction drawings and some structural detailing. This made things a bit more straightforward for the team and reduced the usual confusion that comes with multiple drawings.
Keeping the PNTC Project Moving
In the end, having everything in one model just made life easier. The team could understand the design better, coordination improved, and the project moved ahead without too many delays.
Scope of Work
CAD - BIM
Total Area
2,77,000 Sq. Ft.
Services
Architecture, Structure & Rendering
Softwares Used
AutoCAD, Revit and Twin Motion
Sector
Commercial
Location
INDIA
Ready to Work with us?
We establish long-term business relationships with our clients and are
committed to complete customer satisfaction. We would love to know
about your next project.
Project Challenges
High-Rise Building Complexity
Modeling a 13-story commercial structure required careful vertical coordination to maintain accuracy, consistency, and alignment across all floors.
Interpreting Client Drawings
Converting 2D drawings and blueprints into a precise 3D BIM model demanded thorough review to preserve design intent and avoid modeling discrepancies.
Structural Analysis Integration
Aligning architectural BIM with structural requirements required detailed assessment to ensure constructability and coordination.
On-Site Condition Validation
Validating site conditions through inspections was essential to ensure the BIM model accurately reflected real-world constraints.
Documentation Accuracy
Producing construction-ready drawings required strict adherence to standards and detailed quality checks to prevent site-level confusion.
Coordinated Workflow Management
Synchronizing on-site activities with off-site BIM development required structured SOPs and continuous communication to meet timelines.
What We Delivered
- Accurate 3D Architectural BIM model developed in Revit
- Complete construction documentation package
- Coordinated structural drawings aligned with the BIM model
- Standardized workflows enabling smooth on-site and off-site integration
