Parkview Villa
Project Overview
Parkview Villa BIM Work
For the Parkview Villa project, the client had PDFs and design inputs, but it wasn’t very easy to understand everything clearly in that format. So the idea was to bring it all into a proper BIM model that the team could actually use.
Working on the Parkview Villa Model

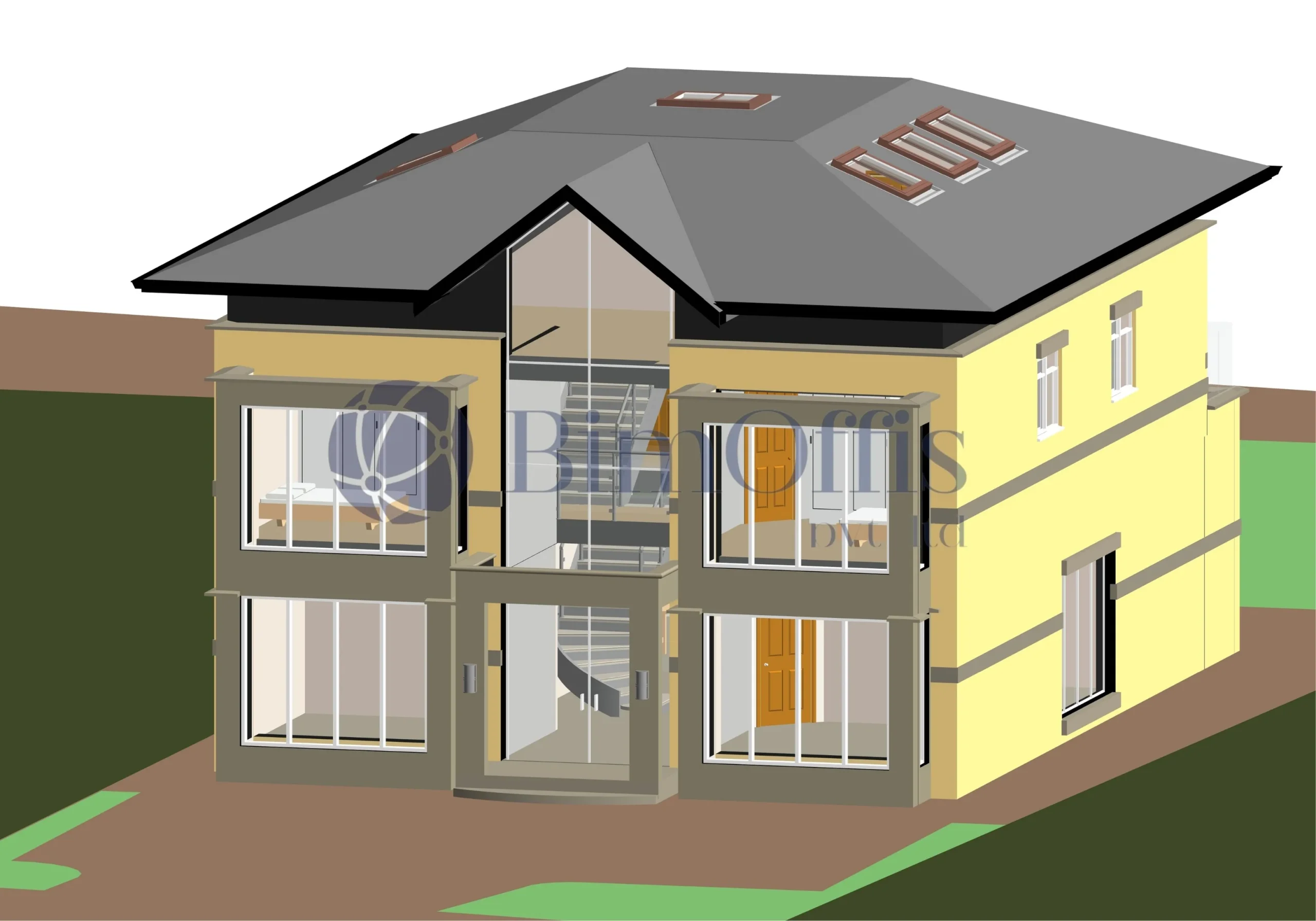

We built the architectural model in Autodesk Revit. Since it’s a multilevel residential setup, there was quite a bit to manage, but we kept things simple and clear so it’s easy to work with.
Drawings and Visualization for Parkview Villa

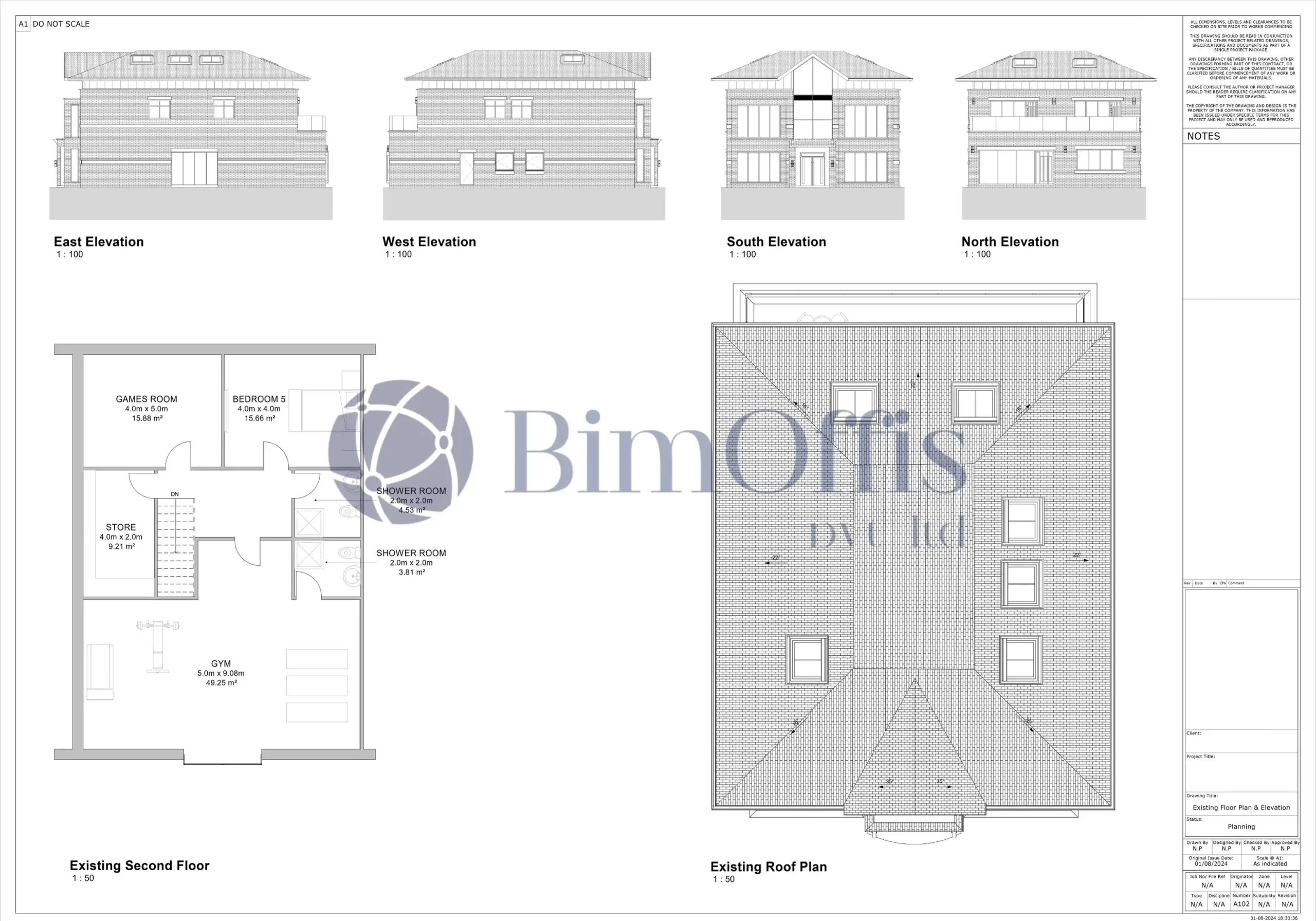

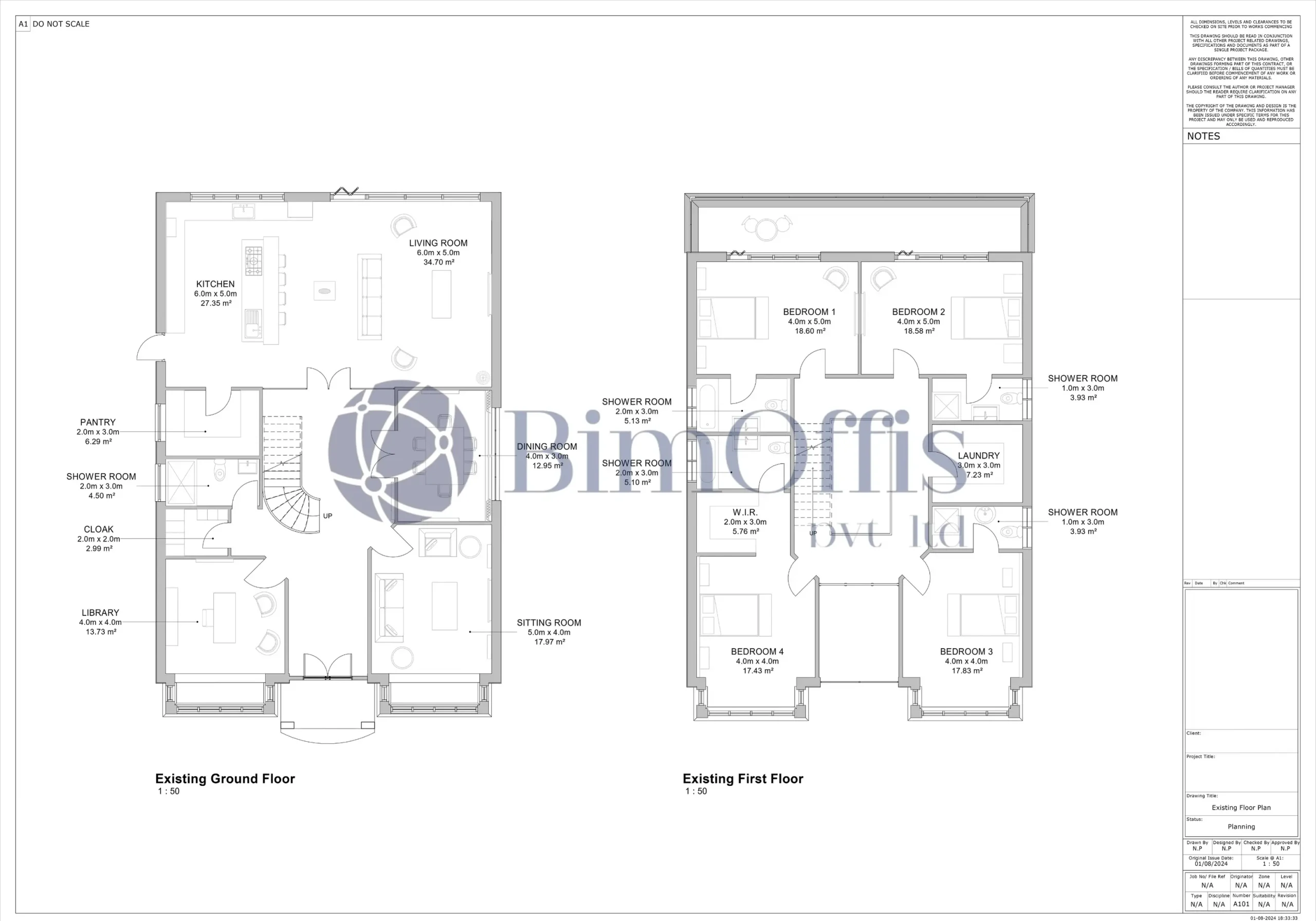

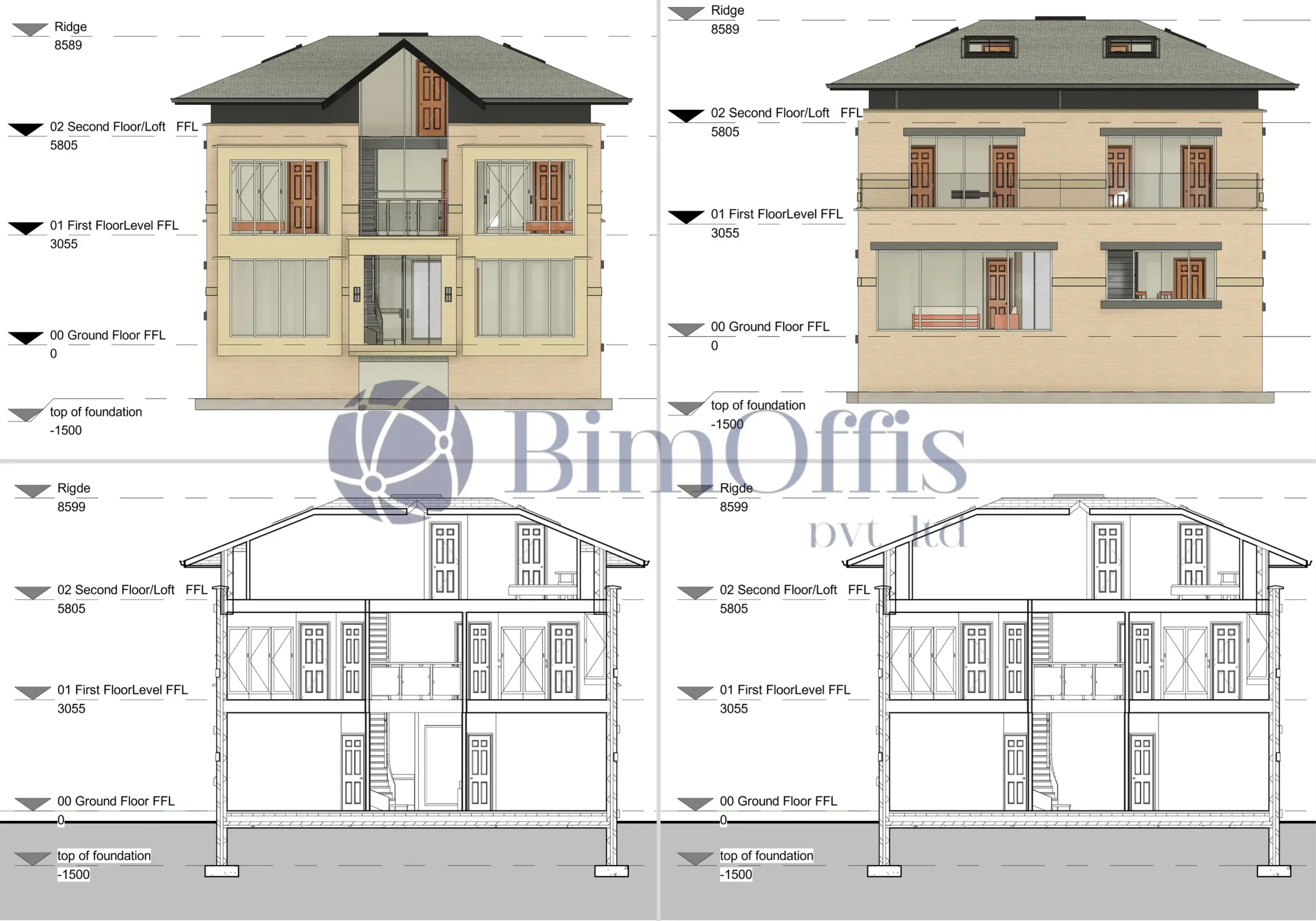

Along with the model, we also worked on construction drawings, documentation, and some CGI visuals. This helped the client get a better feel of the design and made coordination smoother.
Making the Parkview Villa Project Easier
In the end, having everything in one place made a big difference. The team could understand the design better, plan properly, and move ahead without too much confusion.
Scope of Work
CAD - BIM
Total Area
5200 Sq. Ft.
Services
Architecture
Softwares Used
Revit, Lumion
Sector
Residential
Location
USA
Ready to Work with us?
We establish long-term business relationships with our clients and are
committed to complete customer satisfaction. We would love to know
about your next project.
Project Challenges
PDF-to-BIM Interpretation
Converting PDF-based architectural inputs into an accurate BIM model required careful validation to preserve design intent, dimensions, and architectural details.
Multilevel Building Complexity
Modeling multiple residential levels demanded strict control over vertical alignment, repeated elements, and spatial consistency throughout the architectural system.
High Detail Requirements
Incorporating cabinetry, fixtures, appliances, and other components required precise modeling while maintaining performance and data integrity in Revit.
Design Finalization Accuracy
Evaluating and locking the overall design early required multiple internal reviews to minimize revisions during later construction stages.
Construction Documentation Precision
Generating detailed blueprints and documentation from the BIM model required strict adherence to standards to avoid ambiguities on site.
Visualization Consistency
Ensuring CGI visuals accurately reflected the BIM model demanded careful coordination between modeling, documentation, and visualization workflows.
What We Delivered
- Highly accurate 3D Architectural BIM model developed in Revit

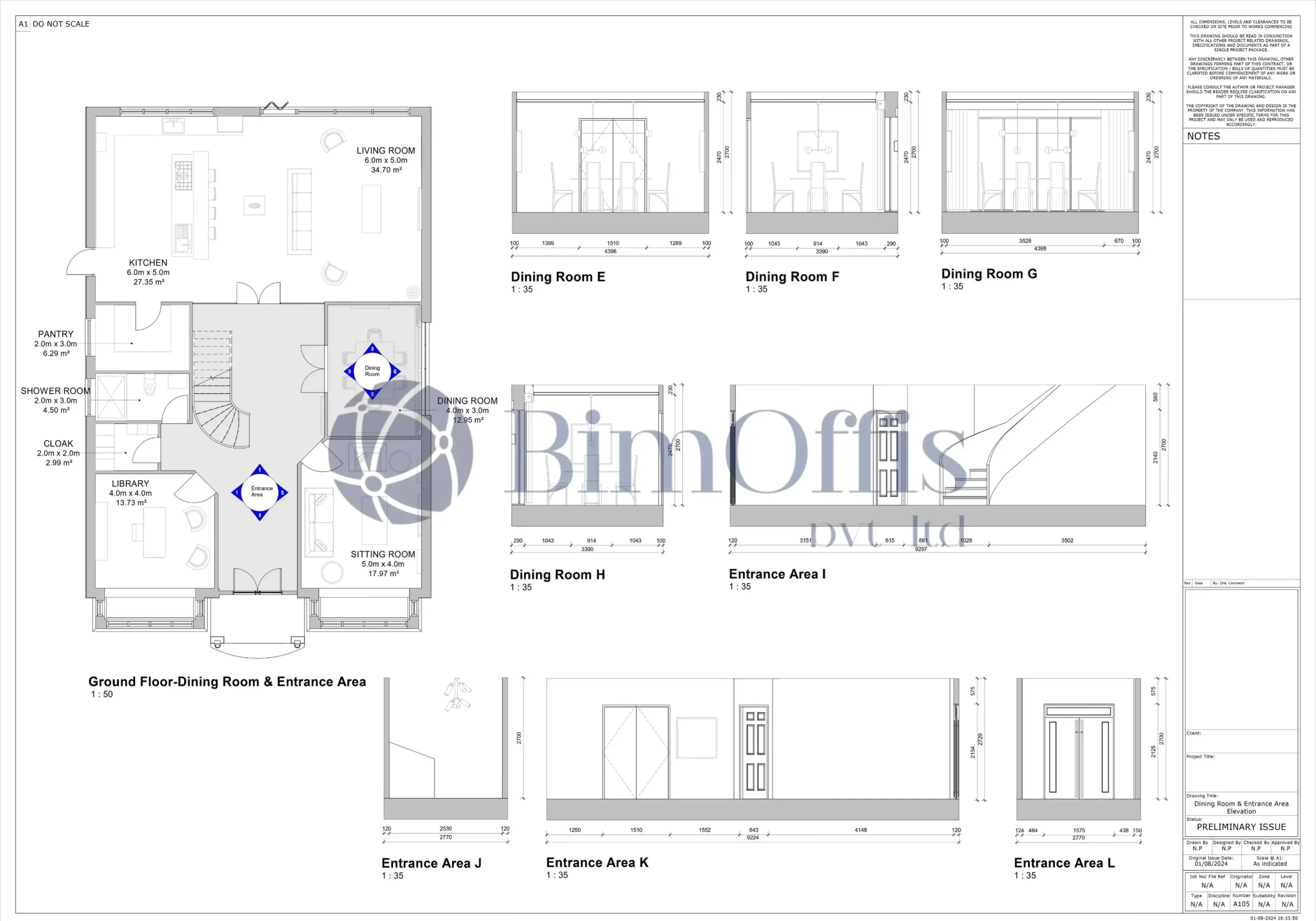

- Detailed construction drawings and documentation set
- High-quality CGI visuals for design presentation
- Coordinated BIM outputs supporting efficient project execution
Project Samples
